PDRV8874QPWPRQ1 - Texas Instruments

Description: Automotive 6A brushed DC motor driver with integrated current sensing and current sense output

Download PDRV8874QPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

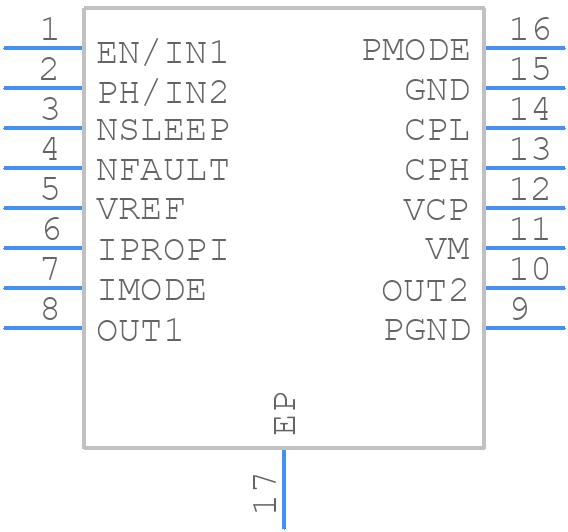

PDRV8874QPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PDRV8874QPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016J
click to zoom
3D Models
PDRV8874QPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0016J
click to zoom

PDRV8874QPWPRQ1 Details

  • Manufacturer Part Number:

    PDRV8874QPWPRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-06-02

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100

  • Supply Voltage-Max (Vsup):

    37 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

PDRV8874QPWPRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect signals to the ground plane.
  • The PDRV8874QPWPRQ1 has a thermal pad that must be connected to a heat sink or a thermal plane on the PCB. Ensure that the thermal pad is properly soldered and connected to a heat sink or thermal plane to prevent overheating.
  • The maximum operating frequency of the PDRV8874QPWPRQ1 is 50 kHz, but it's recommended to operate at a frequency below 20 kHz for optimal performance and to minimize EMI.
  • The PDRV8874QPWPRQ1 can be configured for half-bridge or full-bridge operation by connecting the appropriate pins and setting the input signals accordingly. Refer to the datasheet and application notes for specific configuration details.
  • The recommended input voltage range for the PDRV8874QPWPRQ1 is 12 V to 15 V, but it can operate with input voltages as low as 10.5 V. However, operating at lower input voltages may affect the device's performance and efficiency.
