PE2512FKE070R1L - Yageo Group

Description: Res Metal Film 2512 0.1 Ohm 1% 1W ±50ppm/°C Pad SMD Automotive T/R

Download PE2512FKE070R1L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PE2512FKE070R1L - Yageo Group - PCB symbol
click to zoom
PCB Footprints

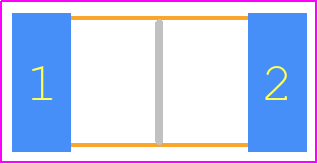

PE2512FKE070R1L - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - PE2512
click to zoom
3D Models
PE2512FKE070R1L - Yageo Group - 3D model - Resistor Chip - PE2512
click to zoom

PE2512FKE070R1L Details

  • Manufacturer Part Number:

    PE2512FKE070R1L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    9

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.64 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.1 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    50 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.3162 V

PE2512FKE070R1L Frequently Asked Questions (FAQs)

  • The recommended land pattern for PE2512FKE070R1L is a rectangular pad with a size of 2.5mm x 1.2mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, PE2512FKE070R1L is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the operating temperature range should be derated according to the manufacturer's guidelines.
  • PE2512FKE070R1L is designed to meet the requirements of IPC/JEDEC J-STD-020D, which includes testing for moisture sensitivity. However, it's still important to follow proper storage and handling procedures to prevent moisture absorption.
  • Yes, PE2512FKE070R1L is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, the manufacturer recommends following the recommended soldering profile to ensure reliable assembly.
  • The recommended storage condition for PE2512FKE070R1L is in a dry, cool place with a relative humidity of 60% or less, and a temperature range of 10°C to 30°C.
