PE2512FKF7W0R008L - Yageo Group

Description: 8 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Metal Film

Download PE2512FKF7W0R008L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PE2512FKF7W0R008L - Yageo Group - PCB symbol
click to zoom
PCB Footprints

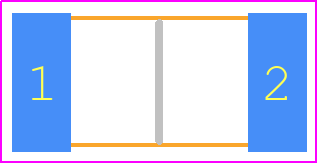

PE2512FKF7W0R008L - Yageo Group PCB footprint - Resistor Chip - Resistor Chip - 2512 (6432 Metric)_2023
click to zoom
3D Models
PE2512FKF7W0R008L - Yageo Group - 3D model - Resistor Chip - 2512 (6432 Metric)_2023
click to zoom

PE2512FKF7W0R008L Details

  • Manufacturer Part Number:

    PE2512FKF7W0R008L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    8

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.64 mm

  • Package Length:

    6.35 mm

  • Package Style:

    SMT

  • Package Width:

    3.18 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.008 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    0.1265 V

PE2512FKF7W0R008L Frequently Asked Questions (FAQs)

  • The recommended land pattern for PE2512FKF7W0R008L is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
  • Yes, PE2512FKF7W0R008L is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and premature failure.
  • Yes, PE2512FKF7W0R008L is compatible with lead-free soldering processes, including RoHS and WEEE compliance. The component is designed to withstand the higher temperatures associated with lead-free soldering.
  • The typical tolerance for the resistance value of PE2512FKF7W0R008L is ±1%. This means that the actual resistance value may vary by up to 1% from the specified value of 8kΩ.
  • Yes, PE2512FKF7W0R008L is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonant frequency and parasitic inductance when designing high-frequency circuits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PE2512FKF7W0R008L Overview

Use the download button to access the PE2512FKF7W0R008L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PE251, or try a keyword search, such as Metal Film Resistors
