The recommended PCB layout for optimal performance of the PEF7072HLV16 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure the PEF7072HLV16 is properly biased for optimal performance, it's recommended to follow the biasing scheme outlined in the datasheet. This typically involves setting the VCC pin to a voltage between 4.75V and 5.25V, and the VEE pin to a voltage between -4.75V and -5.25V. Additionally, it's recommended to use a low-noise voltage regulator and to decouple the power supply lines with capacitors.
The maximum operating temperature range for the PEF7072HLV16 is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
To troubleshoot common issues with the PEF7072HLV16, such as oscillations or instability, it's recommended to check the PCB layout and ensure that it meets the recommended layout guidelines. Additionally, check the power supply voltage and ensure that it's within the recommended range. Also, check for any signs of overheating or electrical overstress. If the issue persists, it's recommended to consult the datasheet and application notes or contact MaxLinear Inc's technical support team for further assistance.
The recommended ESD protection for the PEF7072HLV16 involves using ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output pins. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PEF7072HLV16 Overview

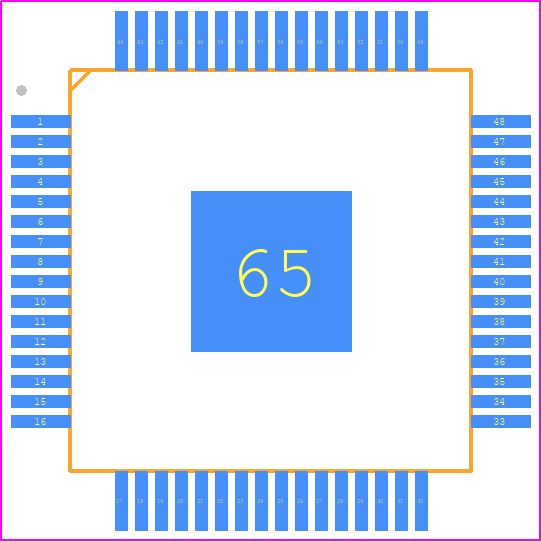

Use the download button to access the PEF7072HLV16 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PEF70,
or try a keyword search, such as Other Telecom ICs
