PGA113AIDGST - Texas Instruments

Description: Texas Instruments,PGA113AIDGST,IC,Amp Texas Instruments PGA113AIDGST, Programmable Gain Amplifier, Rail to Rail Output, 10-Pin VSSOP

Download PGA113AIDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

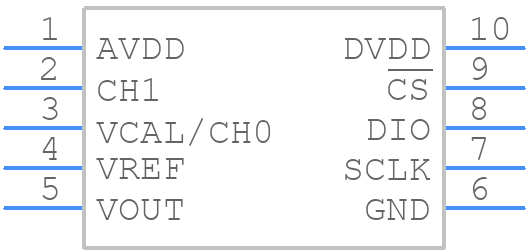

PGA113AIDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA113AIDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
PGA113AIDGST - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

PGA113AIDGST Details

  • Manufacturer Part Number:

    PGA113AIDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PGA113AIDGST Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • The gain setting depends on the input signal amplitude and the desired output signal amplitude. Use the PGA113AIDGST's gain setting formula (Gain = 20 * log10(Vout/Vin)) to determine the optimal gain setting for your application. You can also use the device's internal gain calibration feature to optimize the gain setting.
  • The recommended input impedance is 1 kΩ to 10 kΩ. This ensures that the input signal is not attenuated and the PGA113AIDGST can provide the maximum gain.
  • Use a low-noise power supply, decouple the power supply lines with capacitors, and use a shielded enclosure to minimize electromagnetic interference. Also, keep the analog and digital signals separate and use a ground plane to reduce noise coupling.
  • The maximum input signal amplitude is ±2.5 V. Exceeding this amplitude may result in signal distortion or device damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA113AIDGST Overview

Use the download button to access the PGA113AIDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA11, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to PGA113AIDGST

Showing 0 results
