PGA116AIPW - Texas Instruments

Description: PGA116AIPW, Programmable Gain Amplifier, Rail to Rail Input/Output, 20-Pin TSSOP

Download PGA116AIPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

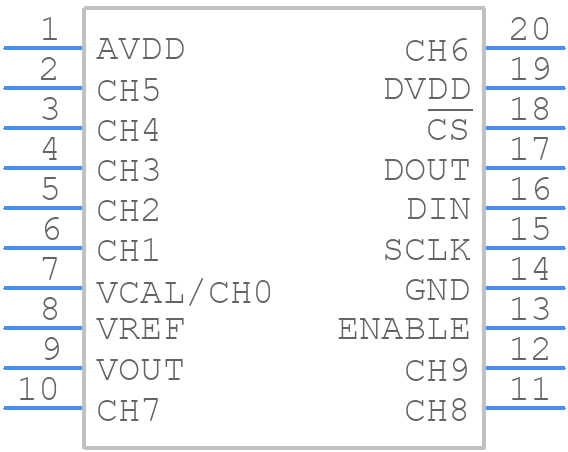

PGA116AIPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA116AIPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
PGA116AIPW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

PGA116AIPW Details

  • Manufacturer Part Number:

    PGA116AIPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PGA116AIPW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the PGA116AIPW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The PGA116AIPW has a programmable gain amplifier, and the gain settings can be configured using the SPI interface. The device has 32 gain settings, ranging from 0 dB to 31 dB, and the gain can be set using the GAIN[4:0] bits in the configuration register. Refer to the datasheet for more information on the gain settings and configuration.
  • The PGA116AIPW has an input voltage range of ±10 V, but it's recommended to limit the input voltage to ±5 V to ensure optimal performance and prevent damage to the device.
  • The PGA116AIPW has a built-in low-pass filter that can be enabled to filter out high-frequency noise and interference. Additionally, external filtering components can be added to the signal chain to further reduce noise and interference. It's also recommended to use proper shielding and grounding techniques to minimize electromagnetic interference.
  • The PGA116AIPW has a typical power consumption of 12.5 mW at 3.3 V supply voltage. Power consumption can be reduced by using the device's power-down mode, which can be enabled by setting the PD pin low. Additionally, the device's quiescent current can be reduced by using a lower supply voltage or by disabling the internal reference voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA116AIPW Overview

Use the download button to access the PGA116AIPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA11, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
