PGA2311PA - Texas Instruments

Description: +/-5V Stereo Audio Volume Control

Download PGA2311PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

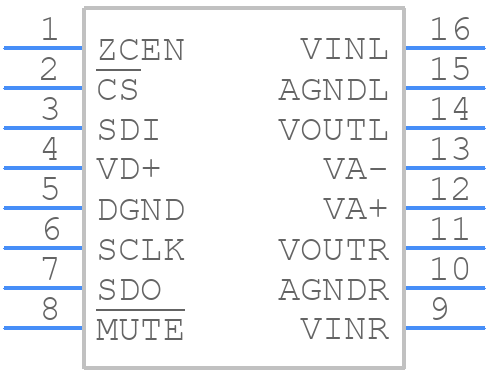

PGA2311PA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA2311PA - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T16)
click to zoom
3D Models
PGA2311PA - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T16)
click to zoom

PGA2311PA Details

  • Manufacturer Part Number:

    PGA2311PA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Channel Separation:

    130 dB

  • Consumer IC Type:

    VOLUME CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Bands:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

PGA2311PA Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog input pins to minimize noise. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
  • To optimize for low noise performance, use a low-noise voltage regulator, decouple the power supply pins with 10uF and 100nF capacitors, and keep the analog input traces short and shielded. Also, avoid running digital signals near the analog input pins.
  • The PGA2311PA can handle input signal amplitudes up to 4Vpp differential, but it's recommended to keep the input signal amplitude below 2Vpp to ensure optimal performance and prevent distortion.
  • The PGA2311PA can be configured for single-ended or differential input modes by setting the SE/DIFF pin high or low, respectively. For single-ended mode, connect the input signal to the IN+ pin and tie the IN- pin to ground. For differential mode, connect the input signal to both IN+ and IN- pins.
  • The gain bandwidth product of the PGA2311PA is approximately 100MHz, which means that the gain of the device decreases as the frequency increases. The device is optimized for audio applications and provides a flat gain response up to 20kHz.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA2311PA Overview

Use the download button to access the PGA2311PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA23, or try a keyword search, such as Audio Control ICs
