- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PGA2311P
- Part Number PGA2311P
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N (R-PDIP-T)
- Released Date Jan 24, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PGA2311P Details
-
Manufacturer Part Number:
PGA2311P
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
PGA2311P Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the PGA2311P involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid routing digital signals under the device.
-
To optimize the PGA2311P for low noise and distortion, use a low-ESR capacitor for the power supply decoupling, keep the input signals away from the device's digital pins, and use a low-noise voltage regulator. Additionally, ensure that the analog and digital grounds are separated and that the device is operated within its recommended operating conditions.
-
The PGA2311P can handle input signal amplitudes up to 2.5Vrms, but it's recommended to limit the input signal amplitude to 2Vrms to ensure optimal performance and to prevent distortion.
-
The PGA2311P can be configured for single-ended or differential input operation by connecting the input pins accordingly. For single-ended operation, connect the input signal to the IN+ pin and ground the IN- pin. For differential operation, connect the differential input signals to the IN+ and IN- pins.
-
The recommended clock frequency for the PGA2311P is between 10kHz and 50kHz, but it can operate up to 100kHz. However, the clock frequency should be chosen based on the specific application requirements and the desired signal-to-noise ratio.
Trust Checks
Community Provided
System Verified
Community Approved
PGA2311P Overview

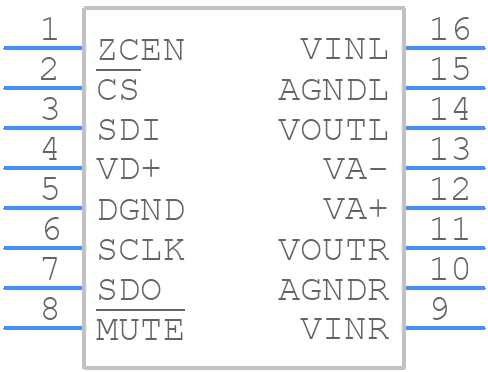

Use the download button to access the PGA2311P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA23,
or try a keyword search, such as Audio Control ICs
