Part Image

PGA2311U - Texas Instruments

Description: PGA2311U, Audio Volume Control 16-Pin SOIC

Download ECAD Model

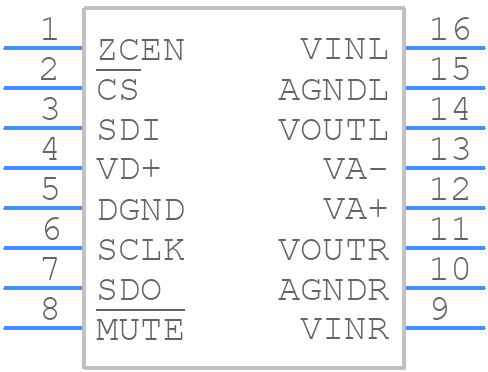

Schematic symbol is unavailable for download
PCB footprint is unavailable for download
3D model is unavailable for download

PCB Footprints

PGA2311U - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom

3D Models

PGA2311U - Texas Instruments  - 3D model - Small Outline Packages - DW0016A
click to zoom

PGA2311U Details

  • Manufacturer Part Number:


  • Brand Name:

    Texas Instruments

  • Pbfree Code:


  • Rohs Code:


  • Part Life Cycle Code:


  • Part Package Code:


  • Package Description:

    SOP, SOP16,.4

  • Pin Count:


  • Reach Compliance Code:


  • ECCN Code:


  • HTS Code:


  • Manufacturer:

    Texas Instruments

  • Risk Rank:


  • Samacsys Modified On:

    2020-10-01 06:30:38

  • Channel Separation:

    130 dB

  • Consumer IC Type:


  • JESD-30 Code:


  • JESD-609 Code:


  • Length:

    10.285 mm

  • Moisture Sensitivity Level:


  • Number of Bands:


  • Number of Channels:


  • Number of Functions:


  • Number of Terminals:


  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:


  • Package Code:


  • Package Equivalence Code:


  • Package Shape:


  • Package Style:


  • Peak Reflow Temperature (Cel):


  • Power Supplies:

    +-5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Subcategory:

    Audio Control ICs

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:


  • Technology:


  • Temperature Grade:


  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:


  • Terminal Pitch:

    1.27 mm

  • Terminal Position:


  • Time@Peak Reflow Temperature-Max (s):


  • Width:

    7.5 mm

Risk Rank: Design Risk

PGA2311U — Texas Instruments
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved

PGA2311U Overview

Use the download button to access the PGA2311U schematic symbol, PCB footprint, and 3D model.
PGA2311U by Texas Instruments has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like PGA23, or try a keyword search, such as Audio Control ICs

Parts related to PGA2311U

Showing 0 results

PGA2311U Alternates

Showing results

Image Part Number Design Risk Rank Model
Part Image PGA2311U/1K Texas Instruments

+/-5V Stereo Audio Volume Control 16-SOIC -40 to 85

Part Image PGA2311UA Texas Instruments

+/-5V Stereo Audio Volume Control 16-SOIC

Part Image PGA2311U/1KG4 Texas Instruments

+/-5V Stereo Audio Volume Control 16-SOIC -40 to 85

Part Image CS3310-KS Crystal Semiconductor Corp

Volume Control Circuit, 2 Channel(s), CMOS, PDSO16, 0.300 INCH, SO-16

Part Image PGA2311UG4 Texas Instruments

+/-5V Stereo Audio Volume Control 16-SOIC -40 to 85

For a full list of alternate parts for PGA2311U, check out FindChips.com
