PGA2500IDBG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - PGA2500IDBG4 - Audio Power Amplifier, AB, 1 Channel, ± 4.75V to ± 5.25V, SSOP, 28 Pins

Download PGA2500IDBG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

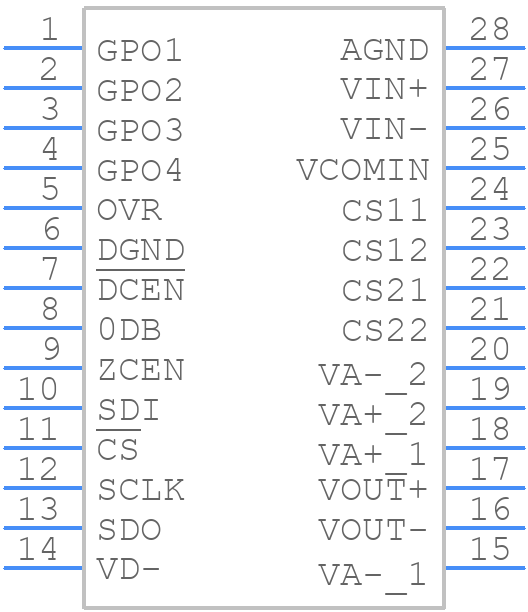

PGA2500IDBG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA2500IDBG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PGA2500IDBG4 - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PGA2500IDBG4 Details

  • Manufacturer Part Number:

    PGA2500IDBG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Gain:

    6.2 dB

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PGA2500IDBG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the PGA2500IDBG4 evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The PGA2500IDBG4 has a digital gain control interface that allows for gain settings to be programmed through an SPI interface. The gain settings can be configured using the TI-provided software development kit (SDK) or by consulting the device's programming guide.
  • The PGA2500IDBG4 has an input voltage range of -0.5V to 5.5V, but it's recommended to limit the input voltage to -0.3V to 5.3V to ensure reliable operation and prevent damage to the device.
  • The PGA2500IDBG4 has a built-in anti-aliasing filter, but additional filtering may be necessary depending on the specific application. TI recommends using external filters, such as RC filters or active filters, to filter out noise and interference.
  • The power consumption of the PGA2500IDBG4 varies depending on the gain setting and operating frequency. According to the datasheet, the typical power consumption is around 12mA at 3.3V supply voltage, but this can increase to up to 20mA at higher gain settings or frequencies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA2500IDBG4 Overview

Use the download button to access the PGA2500IDBG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA25, or try a keyword search, such as Audio/Video Amplifiers
