PGA2505IDBR - Texas Instruments

Description: Gain Range: 0dB, and 9dB to 60dB, in 3dB steps

Download PGA2505IDBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

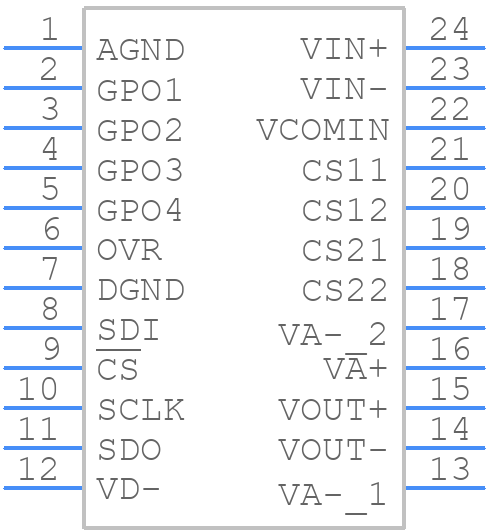

PGA2505IDBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA2505IDBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G24)
click to zoom
3D Models
PGA2505IDBR - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G24)
click to zoom

PGA2505IDBR Details

  • Manufacturer Part Number:

    PGA2505IDBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    AUDIO PREAMPLIFIER

  • Gain:

    25.5 dB

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PGA2505IDBR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • Handle the device by the body, not the pins. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Avoid bending or flexing the pins during assembly. Use a socket or a PCB with a sturdy pin header to prevent pin damage.
  • Power up the device in the following sequence: AVDD, DVDD, and then the analog input signal. Ensure that the power supplies are stable and within the recommended voltage range before applying the analog input signal.
  • Use a low-noise power supply, and decouple the power pins with 10uF and 100nF capacitors. Keep the analog input signal traces away from the digital traces and use a shielded cable for the analog input signal. Use a low-noise reference voltage and ensure the reference voltage is stable and within the recommended range.
  • Perform a full-scale calibration by applying the maximum analog input signal and adjusting the offset and gain to achieve the desired output. Perform a zero-scale calibration by applying a zero analog input signal and adjusting the offset to achieve the desired output.
