Texas Instruments provides a recommended PCB layout in the PGA302EPWR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The gain setting depends on the specific application requirements, such as signal amplitude, noise floor, and desired output range. Engineers can use the PGA302EPWR's gain equation and noise figure calculations to determine the optimal gain setting for their specific use case.
The PGA302EPWR's performance is affected by temperature, with changes in gain, noise figure, and bandwidth. Engineers should consider the operating temperature range and potential thermal gradients when designing their system, and use the device's temperature coefficients to compensate for these effects.
To ensure EMC, engineers should follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. Additionally, the PGA302EPWR's built-in electromagnetic interference (EMI) filters can help reduce emissions and improve immunity.
The recommended power-up sequence is to first apply the analog supply voltage (AVDD), followed by the digital supply voltage (DVDD), and then the enable signal (EN). This sequence helps prevent latch-up and ensures proper device operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA302EPWR Overview

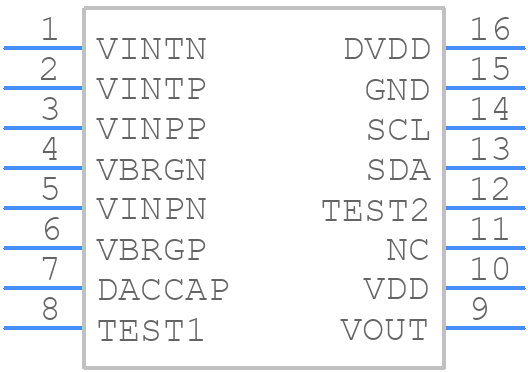

Use the download button to access the PGA302EPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
