Texas Instruments provides a recommended PCB layout in the PGA302EPWT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The gain setting depends on the specific application requirements. The PGA302EPWT has a programmable gain amplifier, and the gain setting can be determined by considering factors such as the input signal amplitude, desired output signal amplitude, and noise tolerance. TI provides a gain setting calculator tool to help with this process.
The PGA302EPWT's performance is affected by temperature, with parameters such as gain, offset, and noise changing with temperature. TI provides temperature coefficient data in the datasheet, and engineers can use this data to compensate for temperature effects in their design.
To ensure EMC, engineers should follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. TI also provides EMC guidelines and recommendations in the PGA302EPWT documentation.
The recommended power-up sequence for the PGA302EPWT is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the input signals. This sequence helps to prevent latch-up and ensures proper device operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA302EPWT Overview

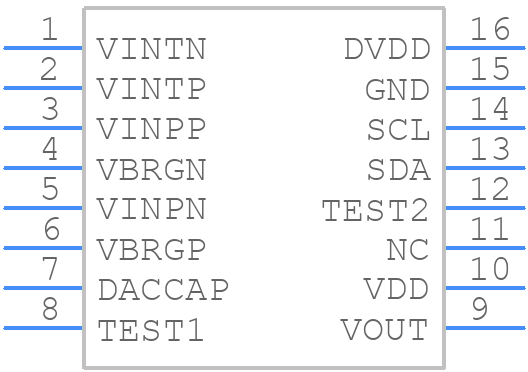

Use the download button to access the PGA302EPWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
