PGA308AIDGST - Texas Instruments

Description: Single Supply, Auto-Zero Sensor Amplifier w/Programmable Gain & Offset

Download PGA308AIDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

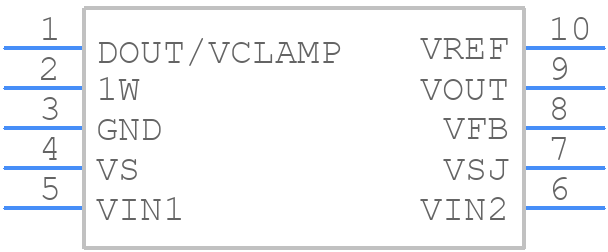

PGA308AIDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA308AIDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
PGA308AIDGST - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

PGA308AIDGST Details

  • Manufacturer Part Number:

    PGA308AIDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PGA308AIDGST Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling.
  • Handle the device by the body, not the leads. Use an anti-static wrist strap or mat to prevent electrostatic discharge. Avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip.
  • The recommended input signal range is 0 to 5V, with a maximum input voltage of 6V. Signals exceeding 6V can cause damage to the device.
  • For single-ended input, connect the input signal to the IN+ pin and tie the IN- pin to ground. For differential input, connect the input signals to the IN+ and IN- pins, ensuring the signals are 180 degrees out of phase.
  • A low-pass filter with a cutoff frequency of 100 kHz to 1 MHz is recommended to remove high-frequency noise and aliasing. Use a 2nd-order or 3rd-order filter with a -3 dB point at the desired cutoff frequency.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

PGA308AIDGST Overview

Use the download button to access the PGA308AIDGST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30, or try a keyword search, such as Other Signal Circuits
