PGA308AQDGSRQ1 - Texas Instruments

Description: Automotive Single Supply, Auto-Zero Sensor Amplifier w/Programmable Gain & Offset

Download PGA308AQDGSRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

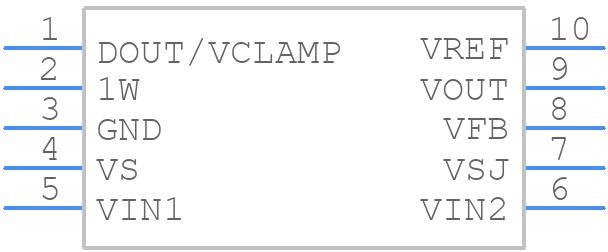

Symbol
PGA308AQDGSRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA308AQDGSRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
PGA308AQDGSRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

PGA308AQDGSRQ1 Details

  • Manufacturer Part Number:

    PGA308AQDGSRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.07 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PGA308AQDGSRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the input and output traces short and symmetrical.
  • Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range of -40°C to 125°C. Also, ensure the power supply voltage (VCC) is within the recommended range of 2.7V to 5.5V.
  • The recommended input impedance is 1 kΩ to 10 kΩ. This ensures optimal signal-to-noise ratio and distortion performance.
  • Use a low-noise power supply, keep the input and output traces short and symmetrical, and use a ground plane to reduce electromagnetic interference (EMI). Also, consider using a noise-reducing capacitor (e.g., 10 nF) between the input pins and ground.
  • The recommended output load impedance is 1 kΩ to 10 kΩ. This ensures optimal signal amplitude and distortion performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA308AQDGSRQ1 Overview

Use the download button to access the PGA308AQDGSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
