PGA309AIPWTG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - PGA309AIPWTG4 - VOLT CONDITIONER, SMD, TSSOP16, 309

Download PGA309AIPWTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

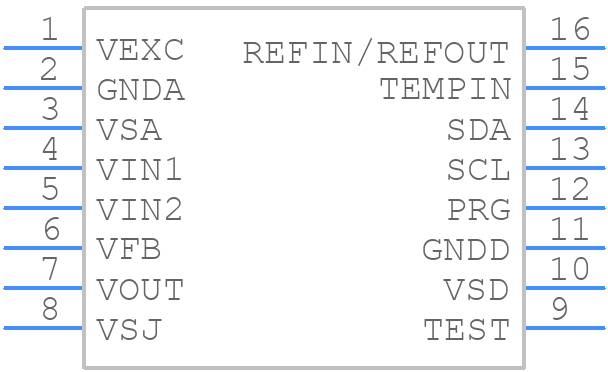

Symbol
PGA309AIPWTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA309AIPWTG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
PGA309AIPWTG4 - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

PGA309AIPWTG4 Details

  • Manufacturer Part Number:

    PGA309AIPWTG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PGA309AIPWTG4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling.
  • The internal voltage reference can be affected by temperature and power supply voltage. Ensure that the device is operated within the recommended temperature range and power supply voltage. Also, use a high-quality power supply with low noise and ripple.
  • The recommended input impedance is 1 kΩ to 10 kΩ. This ensures that the input signal is not attenuated and the PGA309AIPWTG4 can operate within its specified gain range.
  • Use a low-pass filter at the output stage to filter out high-frequency noise. Also, ensure that the PCB layout is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). Use shielding and grounding techniques to reduce noise coupling.
  • The maximum input signal amplitude is ±10V. Exceeding this limit can cause the device to saturate and result in distortion or damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA309AIPWTG4 Overview

Use the download button to access the PGA309AIPWTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30, or try a keyword search, such as Other Signal Circuits
