PGA400QRHHTEP - Texas Instruments

Description: Enhanced-product programmable-sensor signal conditioner with microcontroller

Download PGA400QRHHTEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

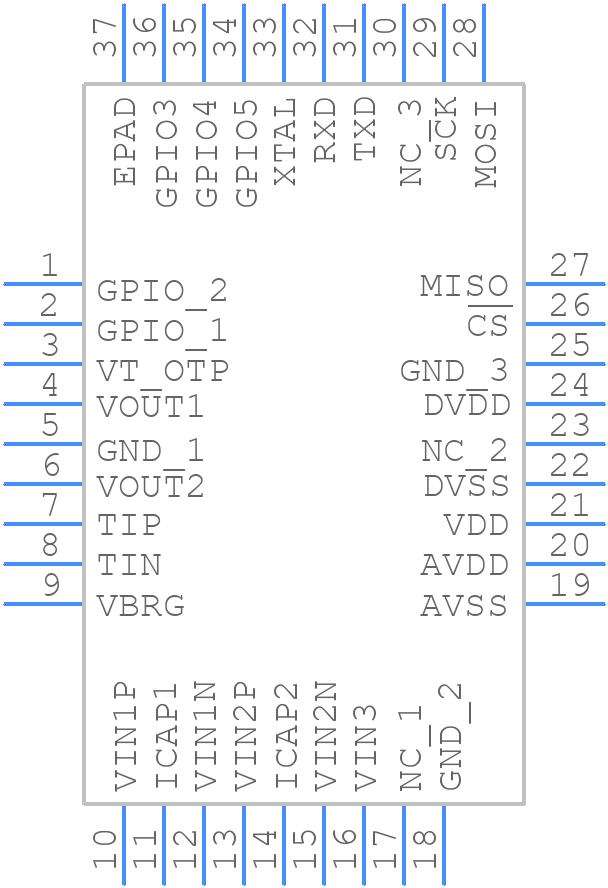

Symbol
PGA400QRHHTEP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA400QRHHTEP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHH (S-PVQFN-N36)_1
click to zoom
3D Models
PGA400QRHHTEP - Texas Instruments - 3D model - Quad Flat No-Lead - RHH (S-PVQFN-N36)_1
click to zoom

PGA400QRHHTEP Details

  • Manufacturer Part Number:

    PGA400QRHHTEP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

PGA400QRHHTEP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in the PGA400QRHHTEP user's guide (SLAU575). It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
  • The PGA400QRHHTEP is a highly configurable device. Texas Instruments provides a software development kit (SDK) and a graphical user interface (GUI) tool that allows engineers to configure the device for various sensor types and applications. The SDK and GUI tool can be downloaded from the Texas Instruments website.
  • The PGA400QRHHTEP can sample at rates up to 50 kSPS (kilosamples per second) and has a maximum data throughput of 100 Mbps (megabits per second). However, the actual sampling rate and data throughput may vary depending on the specific application, sensor type, and system configuration.
  • To ensure EMC and EMI compliance, engineers should follow proper PCB design and layout practices, use shielding and grounding techniques, and implement filtering and shielding on the analog and digital interfaces. Texas Instruments provides guidelines and recommendations for EMC and EMI compliance in the PGA400QRHHTEP user's guide (SLAU575).
  • The PGA400QRHHTEP has a typical power consumption of 35 mA (milliamperes) at 3.3 V (volts) and 25°C (degrees Celsius). Engineers can use the device's power-down modes and dynamic voltage scaling to reduce power consumption. Texas Instruments provides power management guidelines and recommendations in the PGA400QRHHTEP user's guide (SLAU575).
