PGA460TPWQ1 - Texas Instruments

Description: Analog Front End - AFE Automotive Ultrasonic Signal Processor & Transducer Driver 16-TSSOP -40 to 105

Download PGA460TPWQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

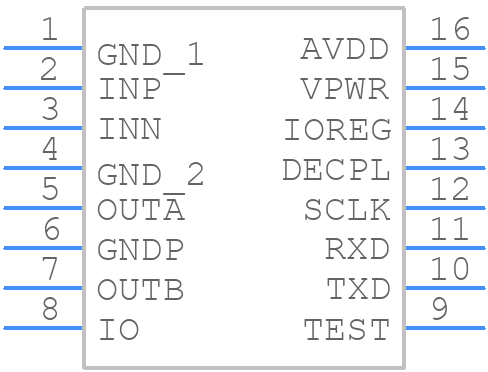

Symbol
PGA460TPWQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA460TPWQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16
click to zoom
3D Models
PGA460TPWQ1 - Texas Instruments - 3D model - Small Outline Packages - TSSOP 16
click to zoom

PGA460TPWQ1 Details

  • Manufacturer Part Number:

    PGA460TPWQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-03-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 6V-15V FOR TRANSFORMER TOPOLOGY

  • Bus Compatibility:

    SPI; UART; USART

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

PGA460TPWQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog and digital power plane is recommended. Keep the analog and digital sections separate and use a star-grounding scheme to minimize noise.
  • Use the lowest possible supply voltage, disable the internal oscillator and use an external clock source, and adjust the gain and bandwidth settings to minimize power consumption. Also, consider using the device's low-power modes.
  • Perform a full-scale calibration by applying a known input signal and adjusting the internal gain and offset registers to achieve the desired output. Repeat the process for different gain settings and temperatures.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input lines. Also, consider using a low-pass filter on the output.
  • The maximum cable length depends on the specific application and the type of cable used. As a general guideline, keep the cable length below 10 meters to minimize signal attenuation and noise.
