PGA460TPWR - Texas Instruments

Description: Ultrasonic Signal Processor and Transducer Driver

Download PGA460TPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

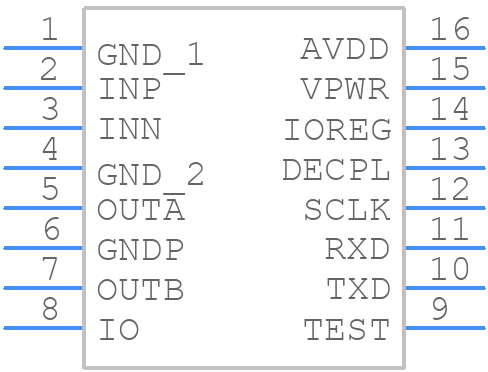

PGA460TPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PGA460TPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP – PW
click to zoom
3D Models
PGA460TPWR - Texas Instruments - 3D model - Small Outline Packages - TSSOP – PW
click to zoom

PGA460TPWR Details

  • Manufacturer Part Number:

    PGA460TPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 6V-15V FOR TRANSFORMER TOPOLOGY

  • Bus Compatibility:

    SPI; UART; USART

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    28 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

PGA460TPWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the power pins.
  • Use a high-quality ultrasonic sensor with a suitable frequency range (e.g., 40 kHz). Ensure proper sensor alignment and a clean, dry environment. Apply a suitable gain setting and adjust the PGA460TPWR's internal filters to optimize signal-to-noise ratio.
  • The maximum cable length depends on the sensor type and cable quality. As a general guideline, use cables up to 10 meters long with a shielded, twisted-pair configuration to minimize noise and signal degradation.
  • Use a multimeter to measure the voltage at the TEMP pin. The voltage should be proportional to the die temperature (1.8V at 25°C). If the voltage is not within the expected range, check for proper power supply, decoupling, and PCB layout.
  • Yes, but ensure the sensor's frequency range and output impedance are compatible with PGA460TPWR. You may need to adjust the gain setting and internal filters to optimize performance with the new sensor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PGA460TPWR Overview

Use the download button to access the PGA460TPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA46, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
