PGA460TPWRQ1 - Texas Instruments

Description: Automotive ultrasonic signal processor and transducer driver

Download PGA460TPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

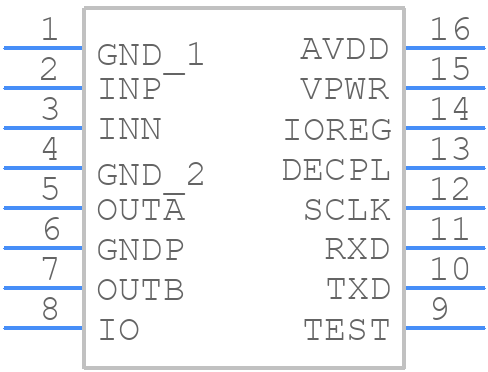

PGA460TPWRQ1 - Texas Instruments - PCB symbol
