Texas Instruments provides a recommended PCB layout in the PGA855RGTR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The optimal gain setting depends on the specific application requirements. Engineers can use the PGA855RGTR's gain adjustment pins to experiment with different gain settings and measure the output signal-to-noise ratio (SNR) to determine the optimal gain for their application.
While the datasheet specifies the maximum input voltage range, the maximum input signal amplitude that the PGA855RGTR can handle depends on the specific application and the impedance of the input signal. As a general rule, the input signal amplitude should be limited to ensure that the PGA855RGTR's input stage is not overdriven, which can cause distortion and affect performance.
To ensure EMC with the PGA855RGTR, engineers should follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering components as needed. Additionally, the PGA855RGTR's exposed pad should be connected to a solid ground plane to reduce electromagnetic radiation.
The recommended power-up sequence for the PGA855RGTR is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the input signal. This sequence helps to ensure that the PGA855RGTR's internal biasing and gain settings are properly established before the input signal is applied.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA855RGTR Overview

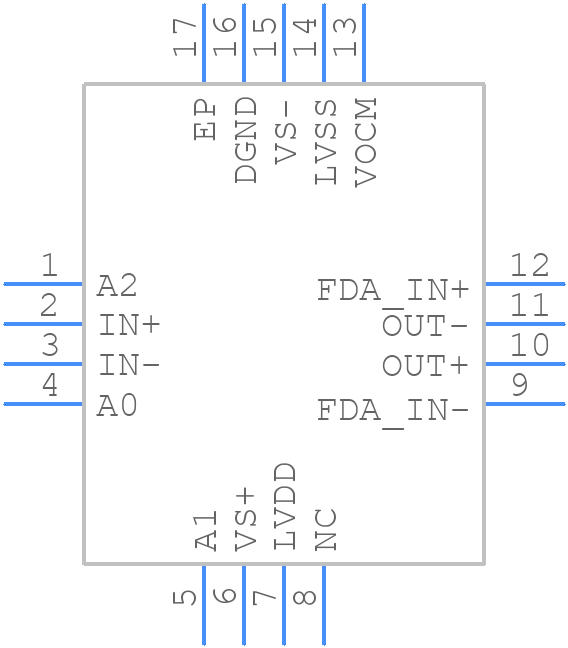

Use the download button to access the PGA855RGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA85,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
