A good PCB layout for the PI5USB30216DXUAEX involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure signal integrity, use controlled impedance traces, minimize trace length and stubs, and use a common mode filter or a differential filter to reduce EMI. Also, ensure that the device is properly terminated and that the signal lines are well-matched.
The PI5USB30216DXUAEX supports cable lengths up to 3 meters, but this can vary depending on the specific application and the quality of the cable. It's recommended to use high-quality, shielded cables to minimize signal degradation.
The PI5USB30216DXUAEX requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up before the VDD pin, and the VDD pin should be powered down before the VCC pin. A power sequencing circuit or a dedicated power management IC can be used to ensure proper power sequencing.
The PI5USB30216DXUAEX has a maximum junction temperature of 125°C. To ensure reliable operation, the device should be mounted on a PCB with a good thermal conductivity, and a heat sink or thermal pad may be required for high-power applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PI5USB30216DXUAEX Overview

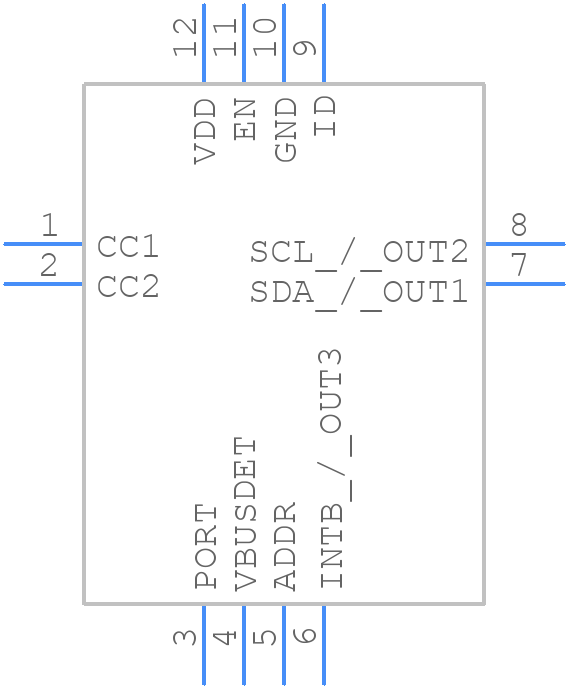

Use the download button to access the PI5USB30216DXUAEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PI5US,
or try a keyword search, such as Power Management Circuits
