PIMC31,115 - Nexperia

Description: 500 mA, 50 V NPN/PNP double Resistor-Equipped Transistor (RET) in a small SOT457 (SC-74) Surface-Mounted Device (SMD) plastic package.

Download PIMC31,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

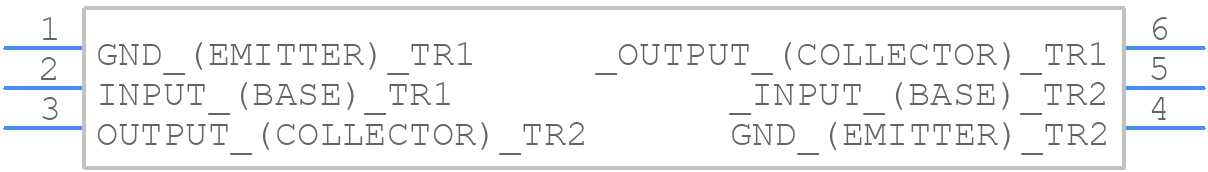

PIMC31,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PIMC31,115 - Nexperia PCB footprint - Other - Other - SOT457 (SC-74)
click to zoom
3D Models
PIMC31,115 - Nexperia - 3D model - Other - SOT457 (SC-74)
click to zoom

PIMC31,115 Details

  • Manufacturer Part Number:

    PIMC31,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 10

  • Collector Current-Max (IC):

    0.5 A

  • Collector-Base Capacitance-Max:

    7 pF

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    70

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.42 W

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • VCEsat-Max:

    0.3 V

PIMC31,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components.
  • To ensure reliable operation at high temperatures, ensure the device is operated within the recommended temperature range, use a suitable thermal interface material, and provide adequate cooling mechanisms such as heat sinks or fans.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It's essential to ensure the device operates within the recommended temperature range.
  • While the PIMC31,115 is designed to operate in a variety of environments, high humidity can still affect its performance. It's recommended to use conformal coating or other moisture-protection measures to ensure reliable operation in humid environments.
  • To troubleshoot issues with the PIMC31,115, start by verifying the device is properly soldered and connected. Check the input and output voltages, and ensure the device is operated within the recommended specifications. If issues persist, consult the datasheet and application notes or contact Nexperia support.
