PL902166USY - Microchip

Description: Clock Synthesizer / Jitter Cleaner Jitter Blocker

Download PL902166USY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

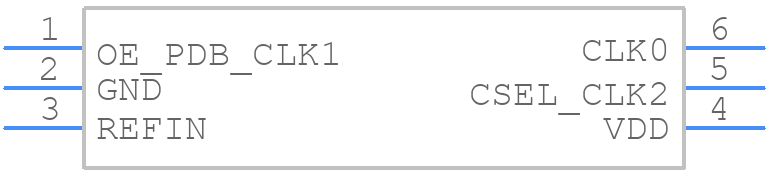

Symbol
PL902166USY - Microchip - PCB symbol
click to zoom
PCB Footprints
PL902166USY - Microchip PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Pin SOT23
click to zoom
3D Models
PL902166USY - Microchip - 3D model - SOT23 (6-Pin) - 6-Pin SOT23
click to zoom

PL902166USY Details

  • Manufacturer Part Number:

    PL902166USY

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT-23-6

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

PL902166USY Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the PL902166USY evaluation board user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The PL902166USY has a programmable output voltage range. You can configure it using the I2C interface to set the output voltage between 0.7V to 3.3V in 10mV increments. Refer to the datasheet for the specific I2C commands and register settings.
  • The PL902166USY can handle input voltages up to 5.5V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
  • To ensure stability and reliability in high-temperature environments, follow the recommended thermal management guidelines in the datasheet, including using a heat sink, reducing power consumption, and implementing thermal monitoring and shutdown mechanisms.
  • Yes, the PL902166USY is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5mA and low dropout voltage (VDO) of 0.2V. However, consider the device's power consumption and battery life requirements to ensure optimal performance and efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL902166USY Overview

Use the download button to access the PL902166USY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL902, or try a keyword search, such as Other Telecom ICs
