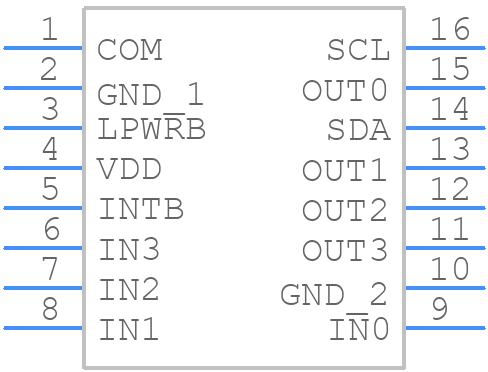

PLDC2114PWT - Texas Instruments

PLDC2114PWT Details

• Manufacturer Part Number:

  PLDC2114PWT

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Package Description:

  TSSOP-16

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  ANALOG CIRCUIT

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  1.89 V

• Supply Voltage-Min (Vsup):

  1.71 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
