A good PCB layout for PLL1705DBQ involves keeping the power and ground planes separate, using a solid ground plane, and placing the PLL close to the clock source. Additionally, use short and direct traces for the clock input and output, and avoid routing signals under the PLL.
The choice of loop filter components depends on the desired loop bandwidth, phase margin, and damping factor. TI provides a PLL calculator tool that can help determine the optimal values for R1, R2, C1, and C2 based on the specific application requirements.
The PLL1705DBQ can support clock frequencies up to 1.5 GHz, but the maximum frequency is dependent on the specific application and the quality of the clock source. It's recommended to consult the datasheet and application notes for more information.
Proper bypassing and decoupling involve placing 0.1uF and 10uF capacitors close to the PLL, with the 0.1uF capacitor connected between VCC and GND, and the 10uF capacitor connected between VCC and a quiet ground point. Additionally, use a low-ESR capacitor for the 10uF decoupling capacitor.
When selecting a clock source for PLL1705DBQ, consider the clock frequency, jitter, and phase noise requirements. A high-quality clock source with low jitter and phase noise is essential for optimal PLL performance. Additionally, ensure that the clock source is compatible with the PLL's input frequency range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLL1705DBQ Overview

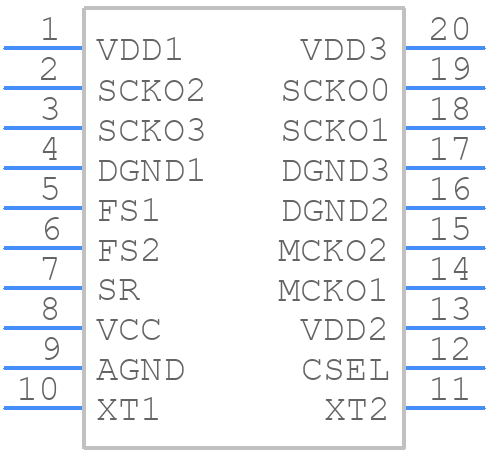

Use the download button to access the PLL1705DBQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLL17,
or try a keyword search, such as Clock Generators
