SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
65 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
3 mm
PLM74800QDRRRQ1 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the PLM74800QDRRRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure reliable operation across the entire operating temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and thermal management. Additionally, consider using thermal simulation tools to analyze the device's thermal performance and optimize the PCB design accordingly.
Common failure modes for the PLM74800QDRRRQ1 include overvoltage, overcurrent, and overheating. To mitigate these, ensure that the device is operated within the recommended specifications, use proper voltage and current limiting, and implement thermal protection mechanisms such as thermal shutdown or overtemperature protection.
To troubleshoot issues with the PLM74800QDRRRQ1, start by consulting the datasheet and application notes. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Texas Instruments also provides technical support and resources, including FAQs, forums, and direct support from their engineers.
Yes, the PLM74800QDRRRQ1 is a high-frequency device, and proper EMI/EMC design considerations are essential to ensure compliance with regulatory requirements. Follow the recommended PCB layout and shielding guidelines, and consider using EMI filters or shielding components to minimize radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLM74800QDRRRQ1 Overview

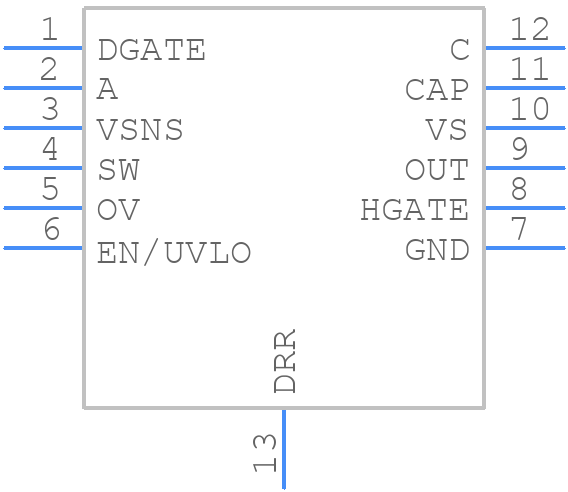

Use the download button to access the PLM74800QDRRRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLM74,
or try a keyword search, such as Power Management Circuits
