Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the power and ground pins are connected to a low-impedance source.
The PLMK05318RGZT has a high power dissipation, so it's crucial to implement proper thermal management. Use a heat sink or thermal pad, and ensure good airflow around the device. The datasheet provides thermal resistance values to help with thermal design.
To minimize EMI and RFI, use a shielded enclosure, and ensure that the device is placed away from noise sources. Implement good PCB design practices, such as using a solid ground plane, and consider using EMI filters or shielding on the input and output lines.
To ensure reliable operation, follow the recommended operating conditions, and ensure that the device is properly derated for temperature. Use a thermistor or temperature sensor to monitor the device temperature, and implement thermal shutdown or warning mechanisms if necessary.
The PLMK05318RGZT has specific power sequencing requirements. Ensure that the power supplies are sequenced correctly, and that the device is powered up and down slowly to prevent damage. The datasheet provides guidelines for power supply voltage and sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLMK05318RGZT Overview

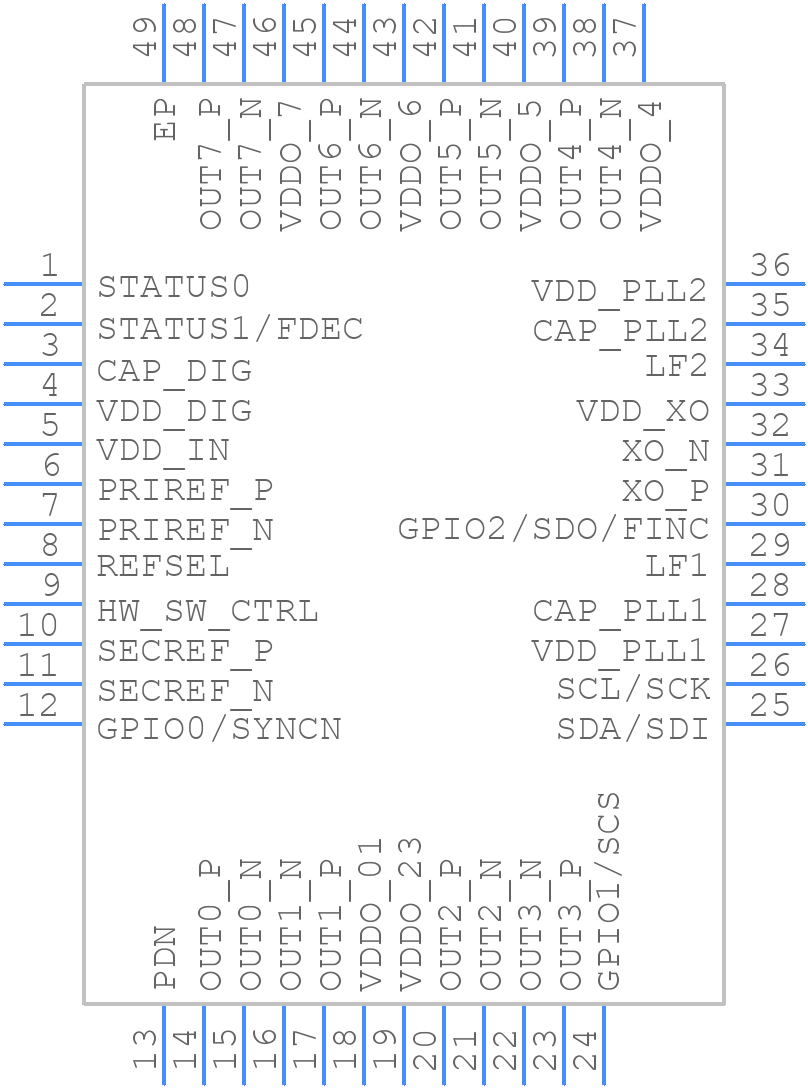

Use the download button to access the PLMK05318RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLMK0,
or try a keyword search, such as Clock Generators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
