PM100RL1A060 - Mitsubishi

Description: INTELLIGENT POWER MODULE, IGBT, 100A, 600V, MODULE; IPM Power Device:IGBT; Voltage Rating (Vces / Vdss):600V; Current Rating (Ic / Id):100A; Isolation Voltage:2.5kV; IPM Case Style:Module; IPM Series:Intellimod L1; Product Range:- RoHS Compliant: Yes

Download PM100RL1A060 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

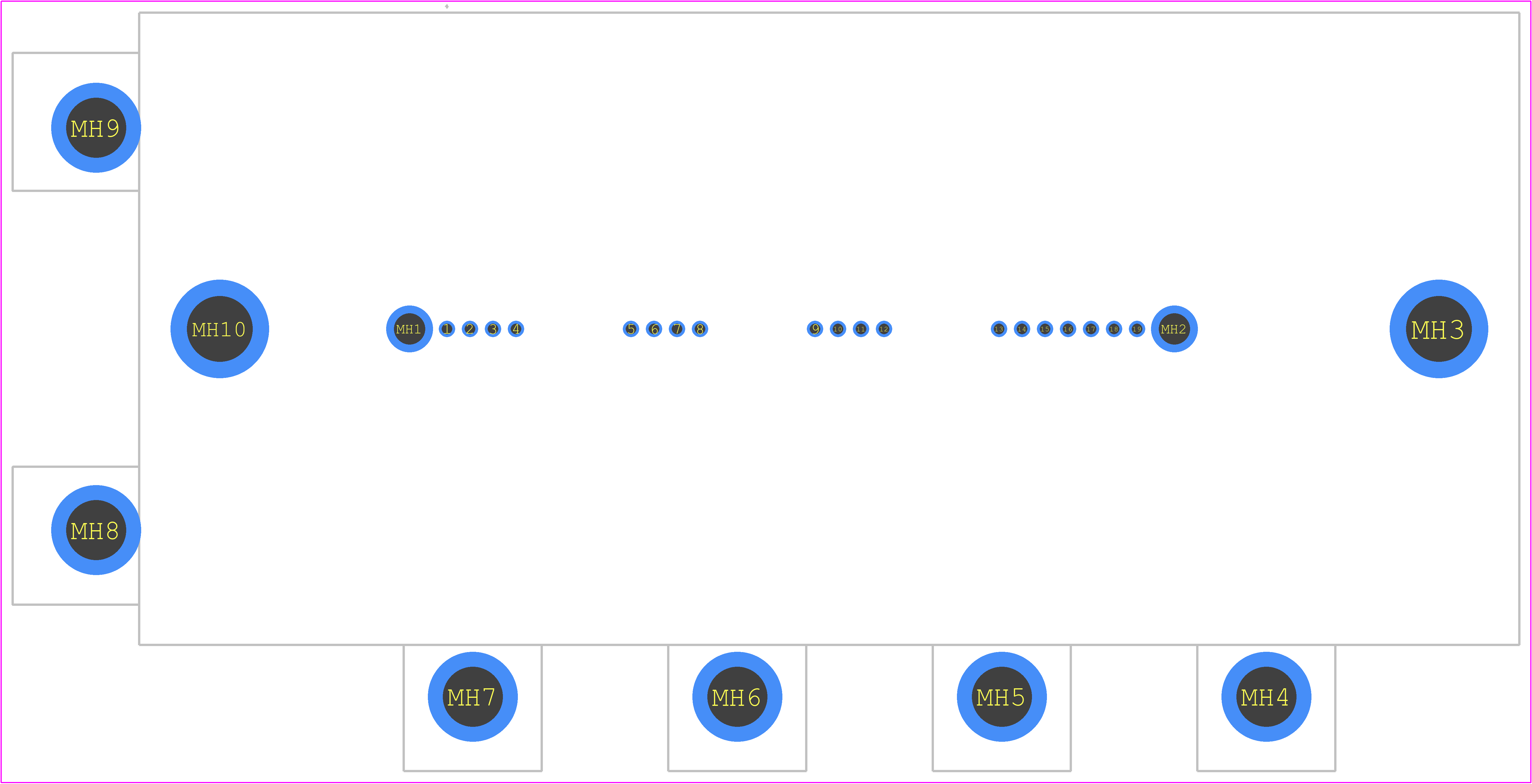

PM100RL1A060 - Mitsubishi PCB footprint - Other - Other - 160mm x 55mm x 23mm
click to zoom

PM100RL1A060 Details

  • Manufacturer Part Number:

    PM100RL1A060

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XXFM-X19

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Output Current-Max:

    200 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XFM

  • Package Equivalence Code:

    MODULE(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    16 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

PM100RL1A060 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the PM100RL1A060 is 150°C, as specified in the datasheet. However, it's recommended to operate it at a temperature below 125°C for optimal performance and reliability.
  • Proper thermal management of the PM100RL1A060 involves ensuring good heat dissipation through the use of a suitable heat sink, thermal interface material, and adequate airflow. The module's thermal resistance (Rth) should be considered when designing the thermal management system.
  • The recommended gate resistor value for the PM100RL1A060 is typically between 10 ohms to 20 ohms, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI) and improve noise immunity.
  • Yes, the PM100RL1A060 can be used in a parallel configuration to increase the overall current rating. However, it's essential to ensure that the modules are properly matched, and the gate drive circuits are designed to handle the increased current and voltage requirements.
  • The maximum allowable voltage imbalance between the DC link and the output terminals of the PM100RL1A060 is typically ±10% of the rated voltage. Exceeding this limit can lead to uneven current distribution, reduced reliability, and potentially even damage to the module.
