PM5180QNGUTQ1 - Texas Instruments

Description: 70-Vin PSR Flyback Converter With 100-V, 1.5-A Integrated Power MOSFET

Download PM5180QNGUTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

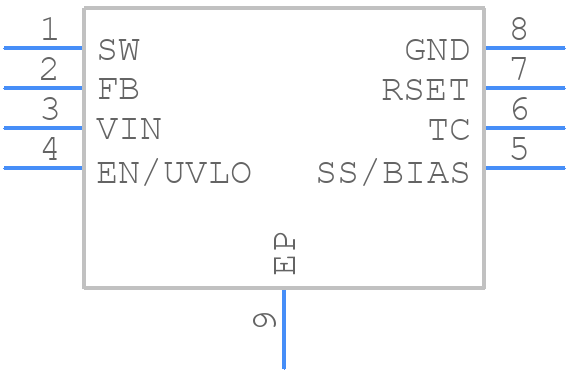

Symbol
PM5180QNGUTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PM5180QNGUTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGU0008B
click to zoom
3D Models
PM5180QNGUTQ1 - Texas Instruments - 3D model - Small Outline No-lead - NGU0008B
click to zoom

PM5180QNGUTQ1 Details

  • Manufacturer Part Number:

    PM5180QNGUTQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.65 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    350 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

PM5180QNGUTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in their application note SLUA623. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
  • The selection of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage. The output capacitor should be selected based on the output voltage ripple and transient response requirements. Refer to the datasheet and application notes for more information.
  • The PM5180QNGUTQ1 can tolerate a maximum input voltage deviation of ±10% from the nominal value. Exceeding this limit may affect the module's performance, efficiency, and reliability.
  • The PM5180QNGUTQ1 has built-in OVP and UVP features. However, external circuitry may be required to customize the protection thresholds and response times. TI provides guidelines and examples in their application notes and design guides.
  • The recommended startup sequence is to apply the input voltage first, followed by the enable signal. During shutdown, the enable signal should be turned off before removing the input voltage. This sequence helps prevent damage to the module and ensures proper operation.
