PMD2001D,115 - Nexperia

Description: Nexperia PMD2001D,115 Dual NPN + PNP Transistor, 600 mA, 40 V, 6-Pin TSOP

Download PMD2001D,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

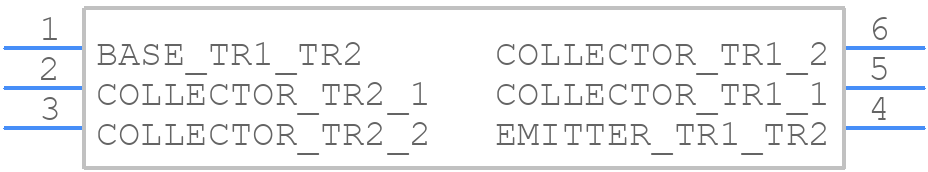

Symbol
PMD2001D,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
PMD2001D,115 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT457 (SC-74)_-1
click to zoom
3D Models
PMD2001D,115 - Nexperia - 3D model - SOT23 (6-Pin) - SOT457 (SC-74)_-1
click to zoom

PMD2001D,115 Details

  • Manufacturer Part Number:

    PMD2001D,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    SC-74, TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.6 A

  • Collector-Emitter Voltage-Max:

    40 V

  • Configuration:

    COMMON BASE AND COMMON EMITTER, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    5 ns

  • Turn-on Time-Max (ton):

    6 ns

PMD2001D,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for PMD2001D,115 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliability in high-temperature applications, ensure that the device is operated within its recommended operating temperature range (-40°C to 125°C). Use a heat sink or thermal pad to dissipate heat, and consider using a thermal interface material to improve heat transfer.
  • The PMD2001D,115 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment.
  • The PMD2001D,115 is rated for a maximum voltage of 40V. Exceeding this voltage can damage the device. If you need to use the device in a high-voltage application, consider using a voltage regulator or other protection circuitry to ensure the device operates within its recommended voltage range.
  • To troubleshoot issues with the PMD2001D,115, start by checking the power supply voltage and ensuring that it's within the recommended range. Check for proper PCB layout and decoupling. Use an oscilloscope to verify the input and output signals, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMD2001D,115 Overview

Use the download button to access the PMD2001D,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMD20, or try a keyword search, such as Small Signal Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
