POWERSTEP01 - STMicroelectronics

Description: System-in-package integrating microstepping controller and 10 A power MOSFETs

Download POWERSTEP01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
POWERSTEP01 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

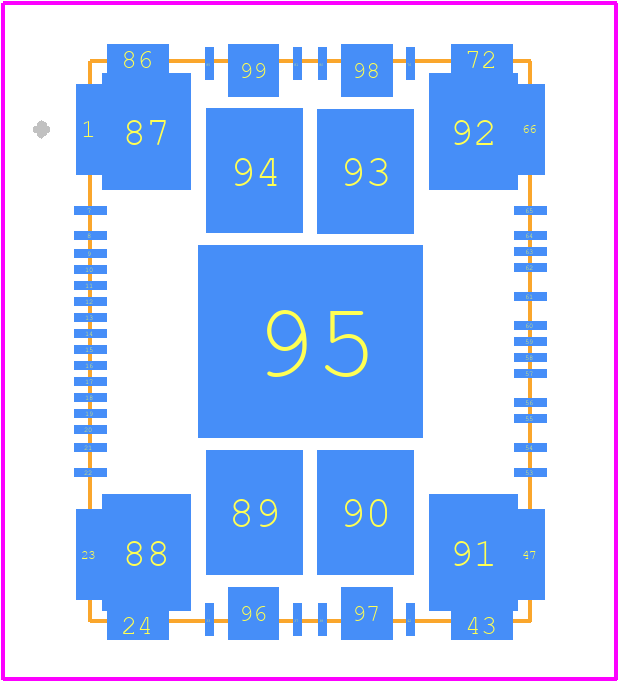

POWERSTEP01 - STMicroelectronics PCB footprint - Other - Other - POWERSTEP01
click to zoom
3D Models
POWERSTEP01 - STMicroelectronics - 3D model - Other - POWERSTEP01
click to zoom

POWERSTEP01 Details

  • Manufacturer Part Number:

    POWERSTEP01

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Additional Feature:

    OTHER NOMINAL VOLTAGE=5V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-XQCC-N89

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    89

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    11 mm

POWERSTEP01 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the POWERSTEP01 is 100 kHz.
  • The POWERSTEP01 can be configured for half-step or micro-stepping mode by setting the appropriate bits in the STEP_MODE register. Refer to the application note AN4362 for more details.
  • The maximum current rating of the POWERSTEP01 is 1.5 A per phase.
  • The POWERSTEP01 has a built-in stall detection feature that can be enabled by setting the STALL_DET bit in the CONTROL register. The device will then monitor the motor current and detect stalls based on the threshold set in the STALL_THR register.
  • Yes, the POWERSTEP01 can be used with stepper motors that have a different number of poles. However, the device's configuration and settings may need to be adjusted accordingly. Refer to the application note AN4362 for more details.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POWERSTEP01 Overview

Use the download button to access the POWERSTEP01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POWER, or try a keyword search, such as Motion Control Electronics
