POWERSTEP01TR - STMicroelectronics

Description: System-in-package integrating microstepping controller and 10 A power MOSFETs

Download POWERSTEP01TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
POWERSTEP01TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

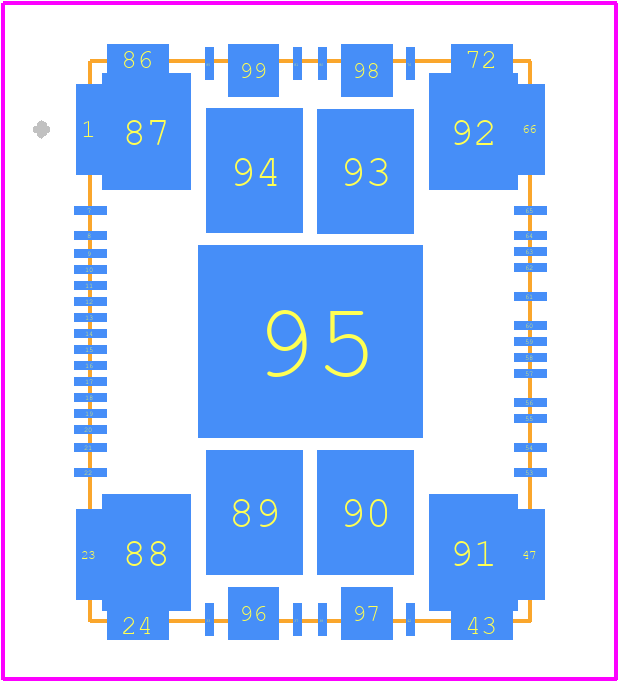

POWERSTEP01TR - STMicroelectronics PCB footprint - Other - Other - POWERSTEP01
click to zoom
3D Models
POWERSTEP01TR - STMicroelectronics - 3D model - Other - POWERSTEP01
click to zoom

POWERSTEP01TR Details

  • Manufacturer Part Number:

    POWERSTEP01TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    11

  • Additional Feature:

    OTHER NOMINAL VOLTAGE=5V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-XQCC-N89

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    89

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    11 mm

POWERSTEP01TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the POWERSTEP01TR is -40°C to 150°C.
  • The POWERSTEP01TR can be configured for specific motor types using the SPI interface. The device has a set of registers that can be programmed to set the motor type, step mode, and other parameters. Refer to the application note AN4338 for more information.
  • The maximum current rating for the POWERSTEP01TR is 1.5A per phase, with a peak current of 2.5A.
  • The POWERSTEP01TR has a built-in stall detection feature that can be enabled through the SPI interface. The device monitors the motor current and detects stalls based on a programmable threshold. Refer to the datasheet for more information on how to implement stall detection.
  • Yes, the POWERSTEP01TR is 5V tolerant, so it can be used with microcontrollers that have a 5V logic level. However, it's recommended to use a level shifter or voltage divider to ensure reliable communication between the microcontroller and the POWERSTEP01TR.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POWERSTEP01TR Overview

Use the download button to access the POWERSTEP01TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POWER, or try a keyword search, such as Motion Control Electronics
