TDK recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the PCB traces should be kept short and wide to minimize inductance.
Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking airflow or placing the device near heat sources. Monitor the device's temperature using a thermocouple or thermal camera to ensure it stays within the specified range.
Exceeding the maximum input voltage rating can cause permanent damage to the IC, including overheating, electrical overstress, and reduced lifespan. It may also lead to output voltage instability, increased noise, and decreased efficiency.
Yes, the PS1740P02E is designed for high-reliability applications. However, it's essential to follow TDK's recommended design guidelines, perform thorough testing, and consider additional safety features such as redundancy, error detection, and fault tolerance to ensure the system meets the required safety and reliability standards.
Start by verifying the input voltage, output load, and PCB layout. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current. Consult TDK's application notes and technical support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS1740P02E Overview

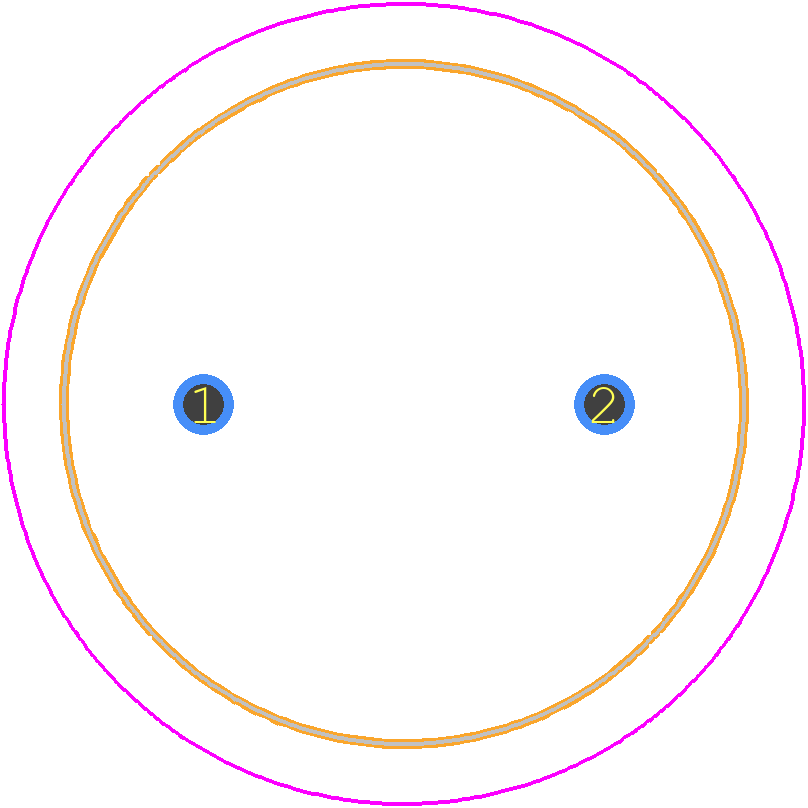

Use the download button to access the PS1740P02E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS174,
or try a keyword search, such as Data Line Filters
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
