Mitsubishi Electric recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
Mitsubishi Electric recommends following the derating guidelines in the datasheet, using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
The PS21962-4S has built-in ESD protection, but handling precautions are still necessary. Use an anti-static wrist strap, mat, or workstation, and avoid touching the device pins or handling the device in environments with high electrostatic potential.
The PS21962-4S is a commercial-grade device, but Mitsubishi Electric offers industrial-grade and automotive-grade versions with enhanced reliability and quality control. Consult with Mitsubishi Electric or a qualified distributor for more information.
Mitsubishi Electric recommends following the JEDEC J-STD-020 standard for soldering and rework. Use a soldering iron with a temperature range of 350°C to 370°C, and avoid applying excessive force or heat to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS21962-4S Overview

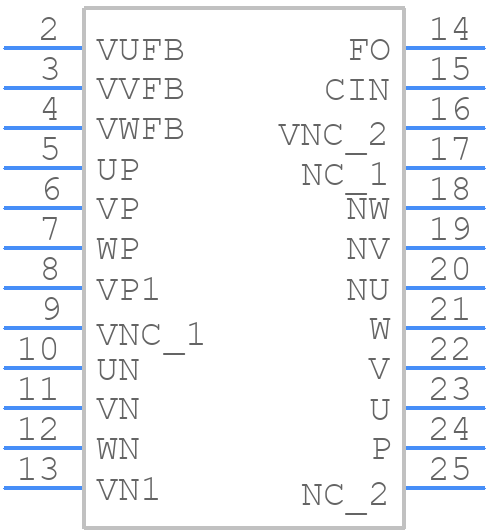

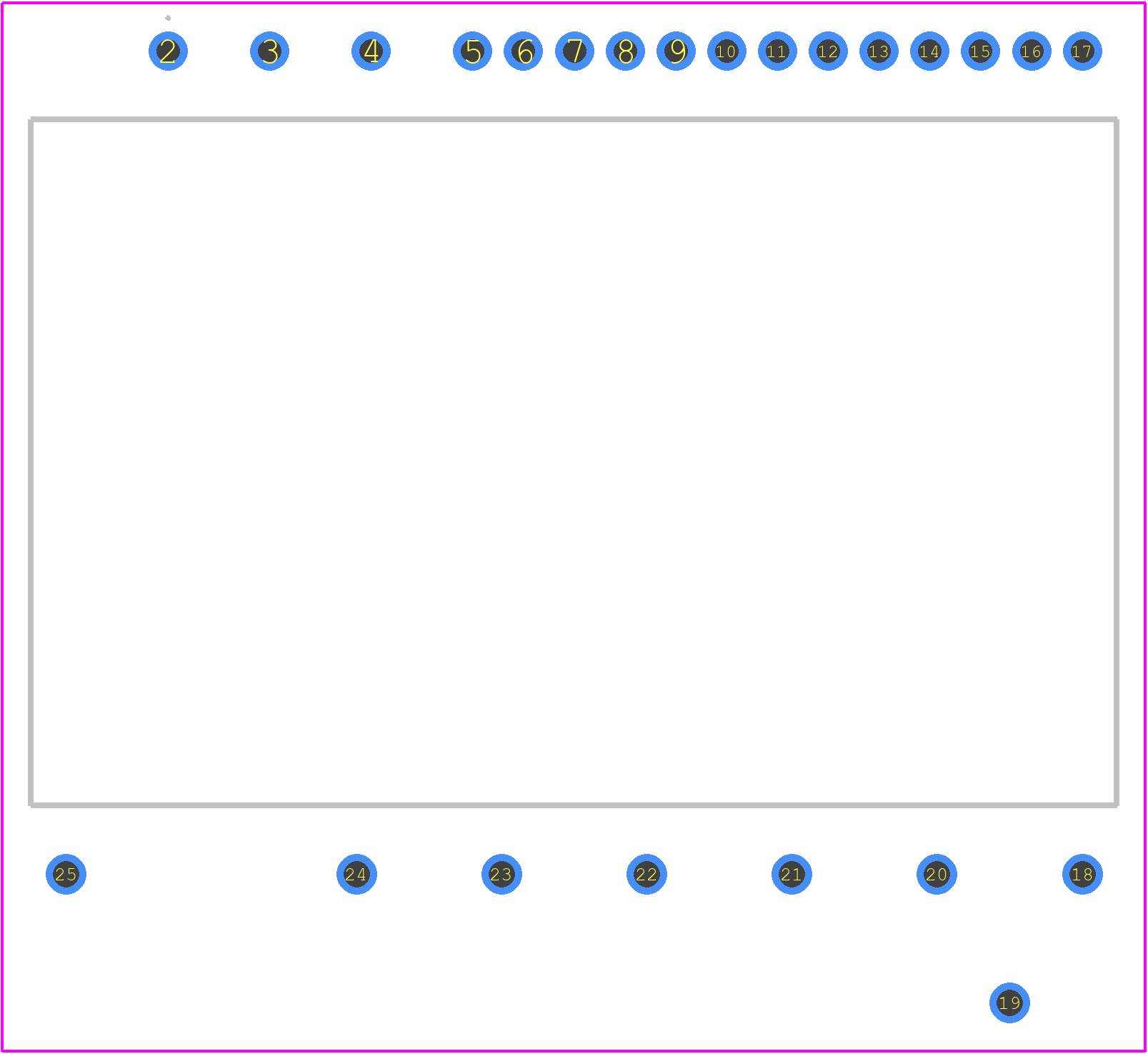

Use the download button to access the PS21962-4S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS219,
or try a keyword search, such as Motion Control Electronics
