Mitsubishi Electric provides a recommended PCB layout and thermal management guide in their application notes. It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
The input capacitor selection depends on the input voltage, frequency, and ripple current. A general rule of thumb is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating at least 1.5 times the input voltage. Additionally, consider the capacitor's ESR, temperature rating, and ripple current capability.
The maximum allowable voltage drop across the internal FETs is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and prevent overheating.
While the PS21965-4A is rated for operation up to 105°C, it's essential to consider the IC's power dissipation, thermal resistance, and the surrounding environment's temperature. Ensure that the IC's junction temperature remains below the maximum rating, and consider using thermal management techniques such as heat sinks or thermal pads.
To troubleshoot issues with the overcurrent protection feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is correctly connected and has the recommended value. Also, verify that the IC is properly configured and that the overcurrent protection threshold is set correctly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS21965-4A Overview

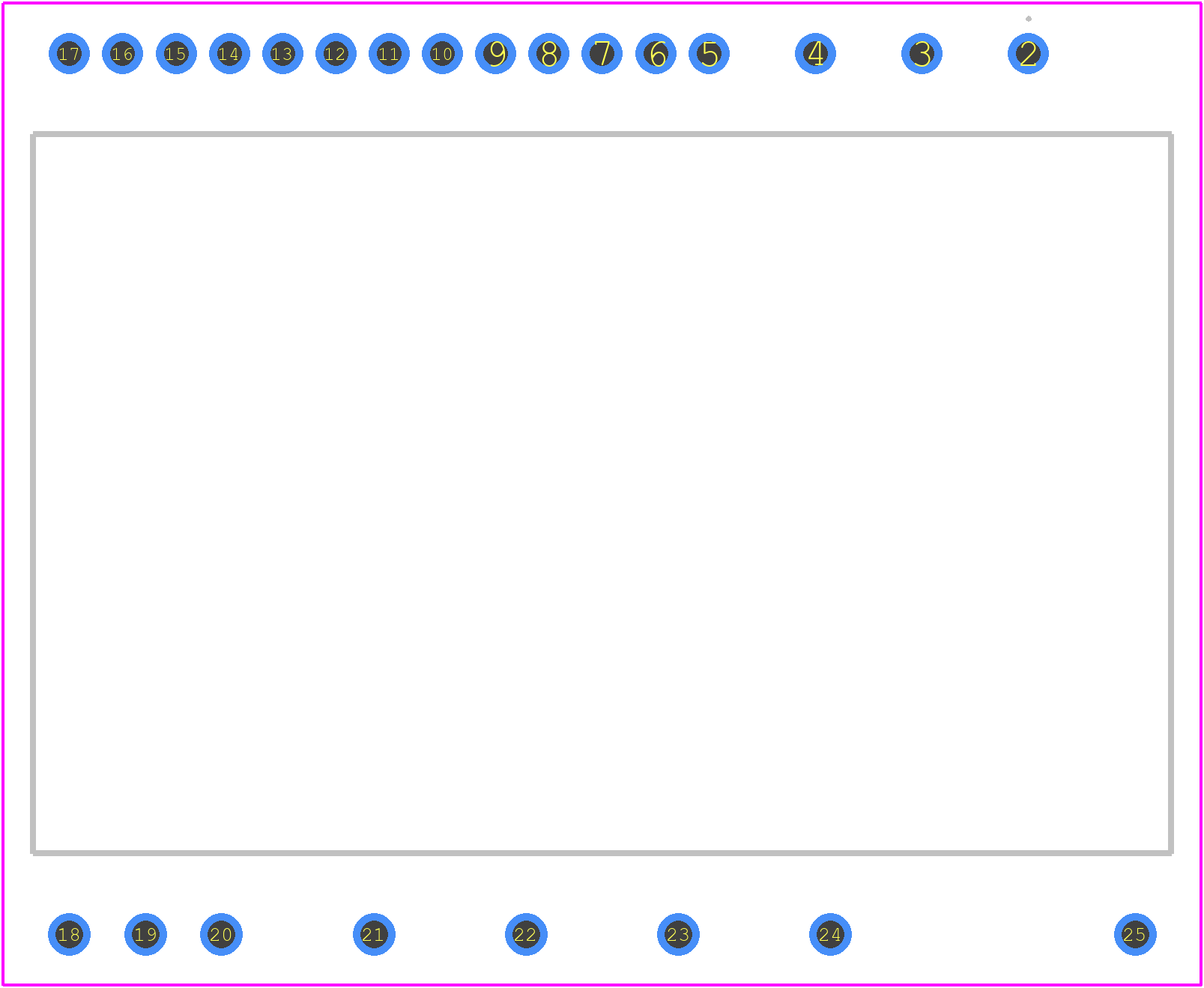

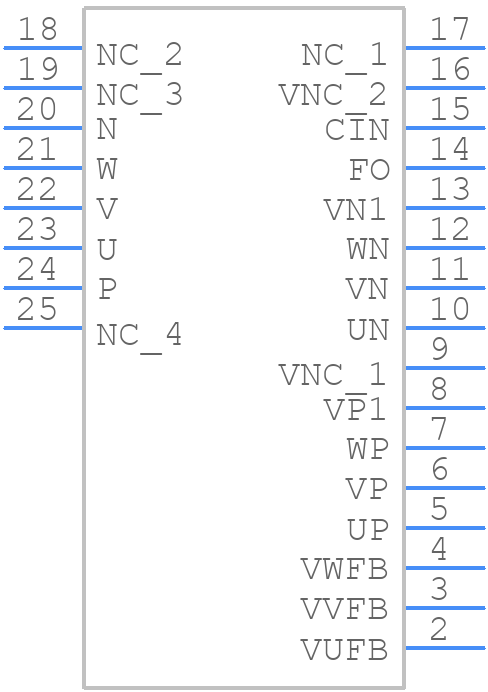

Use the download button to access the PS21965-4A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS219,
or try a keyword search, such as Motion Control Electronics
