PS21A79 - Mitsubishi

Description: MITSUBISHI ELECTRIC - PS21A79 - IGBT MODULE, 600V, 50A, DIP

Download PS21A79 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

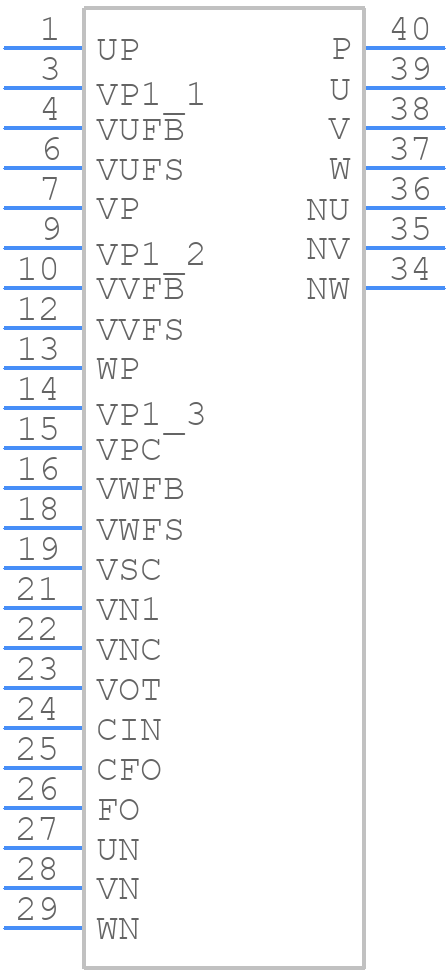

Symbol
PS21A79 - Mitsubishi - PCB symbol
click to zoom

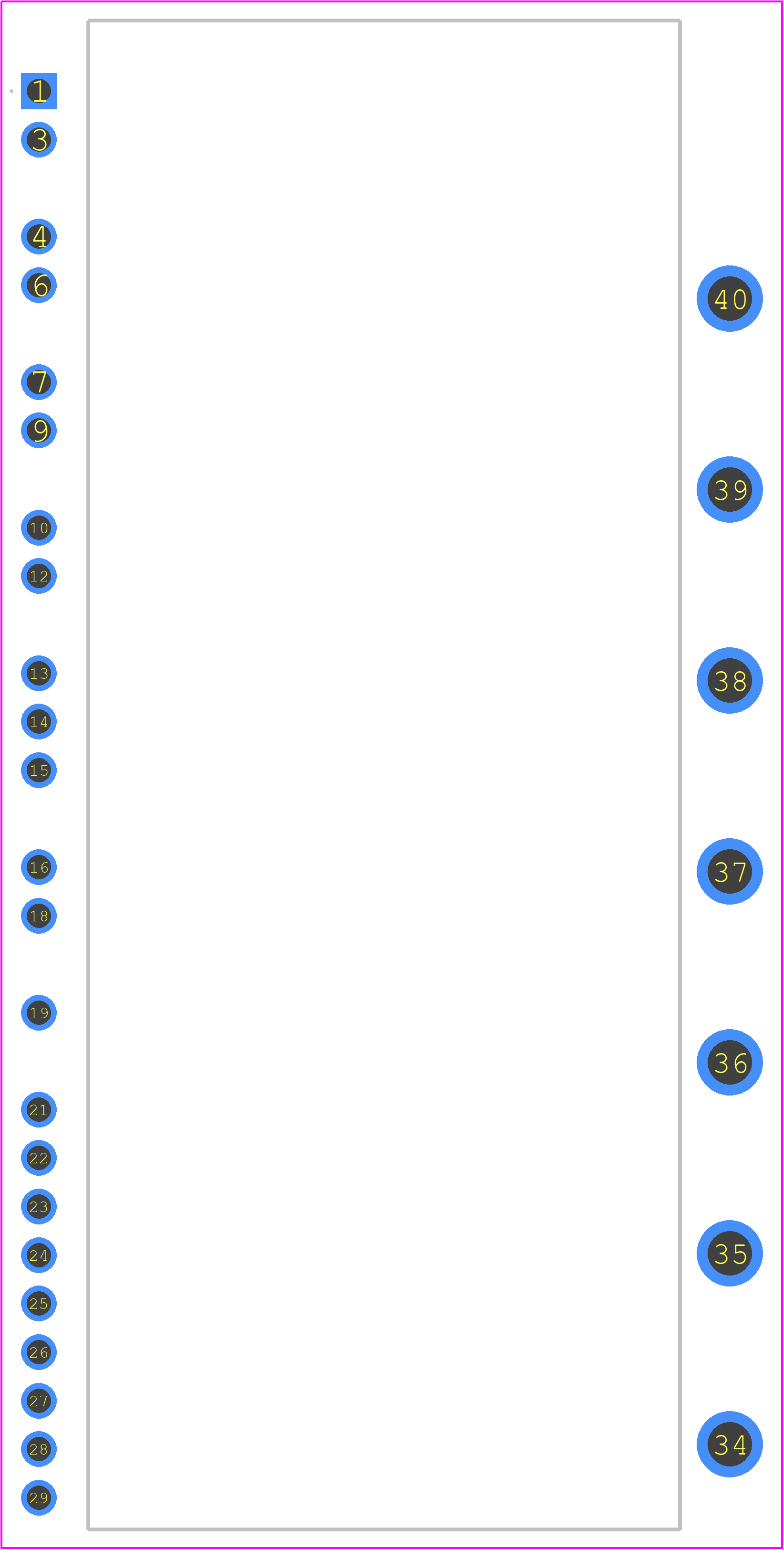

PCB Footprints
PS21A79 - Mitsubishi PCB footprint - Other - Other - 40-Pin DIP
click to zoom
3D Models
PS21A79 - Mitsubishi - 3D model - Other - 40-Pin DIP
click to zoom

PS21A79 Details

  • Manufacturer Part Number:

    PS21A79

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DMA

  • Package Description:

    MODULE-42

  • Pin Count:

    42

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XDMA-T42

  • Length:

    79 mm

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Output Current-Max:

    100 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,42LEAD,1.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    31 mm

PS21A79 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PS21A79 is -40°C to 125°C.
  • To ensure reliability, it's essential to follow the recommended thermal design guidelines, including proper heat sink design, thermal interface material selection, and adequate airflow.
  • The maximum allowable power dissipation for the PS21A79 is 150W. However, this value may vary depending on the specific application and operating conditions.
  • To protect the PS21A79, it's recommended to use overvoltage protection (OVP) and overcurrent protection (OCP) circuits, as well as follow proper PCB design and layout guidelines.
  • The recommended storage condition for the PS21A79 is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 60%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS21A79 Overview

Use the download button to access the PS21A79 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS21A, or try a keyword search, such as Motion Control Electronics
