PS2501-2X - Isocom

Description: Transistor High Density Dual Optocoupler

Download PS2501-2X Model

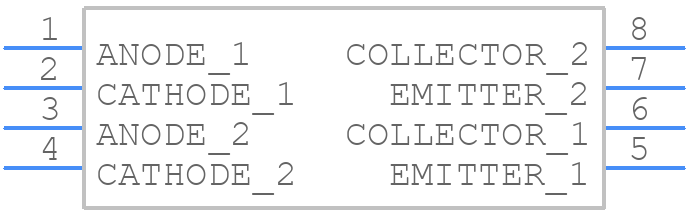

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PS2501-2X - Isocom PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PS2501-2
click to zoom
3D Models
PS2501-2X - Isocom  - 3D model - Dual-In-Line Packages - PS2501-2
click to zoom

PS2501-2X Details

  • Manufacturer Part Number:

    PS2501-2X

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Isocom Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Nom:

    80%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Terminal Finish:

    TIN

PS2501-2X Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal track lengths is recommended. Keep the input and output tracks separate and avoid crossing them over.
  • Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow vents on the package. Monitor the device temperature and adjust the system design accordingly.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and minimize the risk of damage.
  • While the PS2501-2X is a high-quality device, it's essential to consult with Isocom Components or a qualified reliability engineer to ensure the device meets the specific requirements of your high-reliability or safety-critical application.
  • Consult the application notes and troubleshooting guides provided by Isocom Components. Check the PCB layout, input voltage, and output loading. Verify that the device is operated within its specified parameters and that the system design meets the recommended guidelines.
