Description:Support is limited to customers who have already adopted these products.The PS2502-1, -4 and PS2502L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor. The PS2502-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2502L-1, -4 are lead bending type (Gullwing) for surface mount.
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
Use a reliable clock source, ensure proper signal termination, and maintain a stable power supply. Implement error detection and correction mechanisms, such as checksums or CRC, to detect and correct data transmission errors.
The maximum cable length depends on the transmission frequency, cable quality, and environmental factors. As a general guideline, keep the cable length below 10 meters for reliable data transmission. Use shielded cables and connectors to minimize electromagnetic interference.
Use an external power-on reset circuit to ensure a clean power-up sequence. Implement a brown-out detection circuit to detect voltage drops and reset the device if necessary. The PS2502L-4-A has a built-in power-on reset circuit, but an external circuit can provide additional protection.
The PS2502L-4-A has a maximum junction temperature of 150°C. Ensure good airflow around the device, and use a heat sink if necessary. Avoid blocking the airflow around the device, and keep the ambient temperature below 85°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2502L-4-A Overview

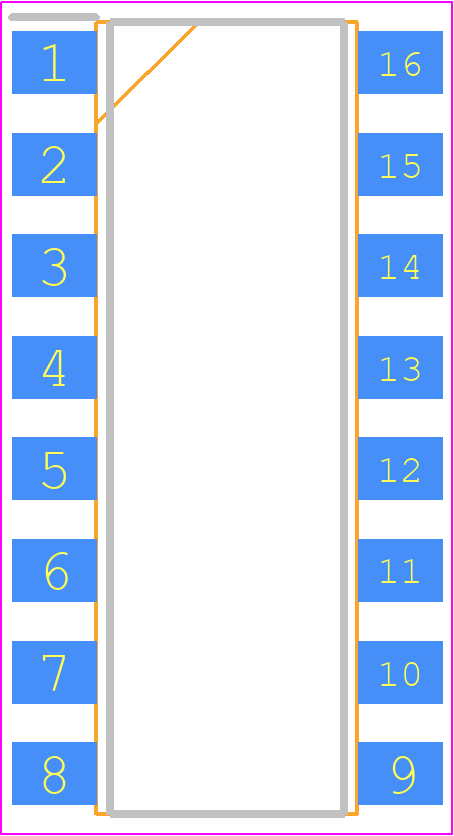

Use the download button to access the PS2502L-4-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS250,
or try a keyword search, such as Optocoupler
