PS2505-4-A - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The PS2505-1, -4 and PS2505L-1, -4 are optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor. The PS2505-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2505L-1, -4 are lead bending type (Gullwing) for surface mount.

Download PS2505-4-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

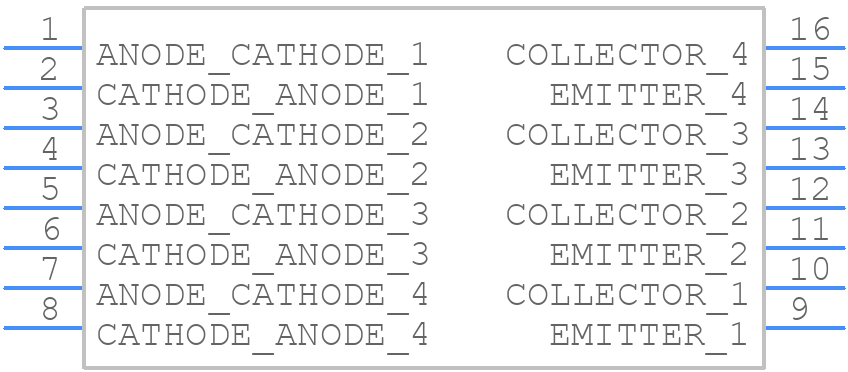

PS2505-4-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS2505-4-A - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PS2505-4
click to zoom
3D Models
PS2505-4-A - Renesas Electronics - 3D model - Dual-In-Line Packages - PS2505-4
click to zoom

PS2505-4-A Details

  • Manufacturer Part Number:

    PS2505-4-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DIP-16

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    80%

  • Current Transfer Ratio-Nom:

    300%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e6

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000003 s

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN BISMUTH

PS2505-4-A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination and noise filtering. Also, use a common clock source and ensure the microcontroller's clock frequency is within the PS2505-4-A's specified range.
  • The maximum cable length depends on the specific application and noise environment. As a general guideline, keep the cable length below 10 meters to minimize signal degradation and noise pickup.
  • Ensure a clean power-on reset by using a power-on reset circuit or a supervisor IC. For power-down sequencing, follow the recommended power-down sequence in the datasheet to prevent damage to the device.
  • Ensure good airflow around the device, and use a heat sink if necessary. Keep the device away from heat sources and ensure the PCB is designed for good thermal dissipation.
