A symmetrical layout with a solid ground plane and minimal track lengths is recommended. Keep the input and output tracks separate and avoid crossing them to minimize noise and ensure stable operation.
Use a 10uF ceramic capacitor between the input and ground pins, and a 100nF ceramic capacitor between the output and ground pins. Place these capacitors as close to the device as possible.
The maximum allowed voltage drop is 2.5V. Exceeding this may cause the device to malfunction or reduce its lifespan.
The PS2505-4 is rated for operation up to 85°C. However, derating the output current is recommended for temperatures above 70°C to ensure reliable operation.
Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input to protect the device from voltage surges and spikes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2505-4 Overview

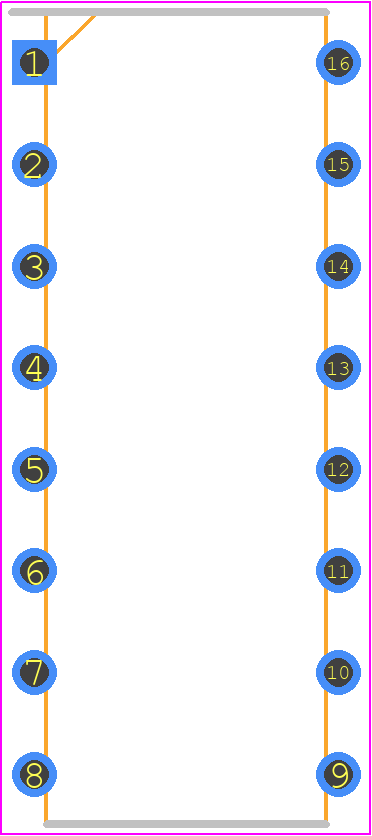

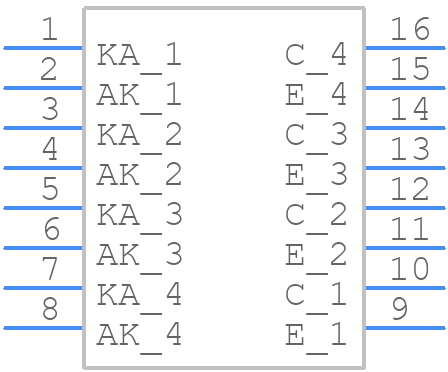

Use the download button to access the PS2505-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS250,
or try a keyword search, such as Optocoupler
