PS2701-1-F3-P-A - Renesas Electronics

PS2701-1-F3-P-A Details

• Manufacturer Part Number:

  PS2701-1-F3-P-A

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

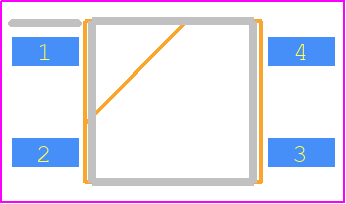

  LEAD FREE, SOP-4

• HTS Code:

  8541.40.80.00

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  3

• Additional Feature:

  UL APPROVED

• Coll-Emtr Bkdn Voltage-Min:

  40 V

• Configuration:

  SINGLE

• Current Transfer Ratio-Min:

  150%

• Dark Current-Max:

  100 nA

• Forward Current-Max:

  0.05 A

• Forward Voltage-Max:

  1.4 V

• Isolation Voltage-Max:

  3750 V

• Mounting Feature:

  SURFACE MOUNT

• Number of Elements:

  1

• On-State Current-Max:

  0.08 A

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -55 °C

• Optoelectronic Device Type:

  TRANSISTOR OUTPUT OPTOCOUPLER

• Packing Method:

  TR, EMBOSSED, 13 INCH

• Power Dissipation-Max:

  0.15 W

• Response Time-Max:

  0.000003 s

• Surface Mount:

  YES
