Renesas provides a recommended PCB layout guide in their application notes (e.g., AN18421) and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
The PS2702-1-F3-K-A has a thermal pad on the bottom, which requires a thermal interface material (TIM) and a heat sink for efficient heat dissipation. Ensure the heat sink is properly attached, and the TIM is applied according to the manufacturer's instructions.
The datasheet provides general guidelines, but Renesas recommends using a low-ESR capacitor (e.g., ceramic or film capacitor) with a value between 1-10 μF for CIN and COUT. The specific value depends on the application's requirements and should be determined through simulation and testing.
Renesas provides EMC guidelines in their application notes and evaluation board documentation. Key considerations include proper PCB layout, component selection, and shielding. Additionally, ensure that the device is operated within the specified frequency range and follows the recommended operating conditions.
Renesas recommends following the JEDEC J-STD-020D.1 standard for soldering. The device is sensitive to temperature and humidity, so it's essential to control the soldering process to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2702-1-F3-K-A Overview

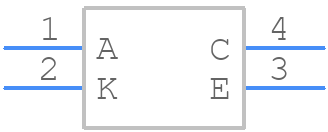

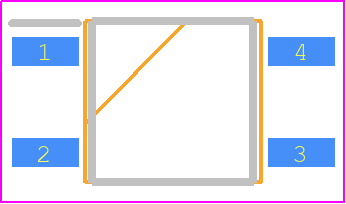

Use the download button to access the PS2702-1-F3-K-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS270,
or try a keyword search, such as Optocoupler
