PS2802-4-A - Renesas Electronics

Description: The PS2802-1 and PS2802-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected photo transistor in a plastic SSOP for high density applications. This package has shield effect to cut off ambient light.

Download PS2802-4-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

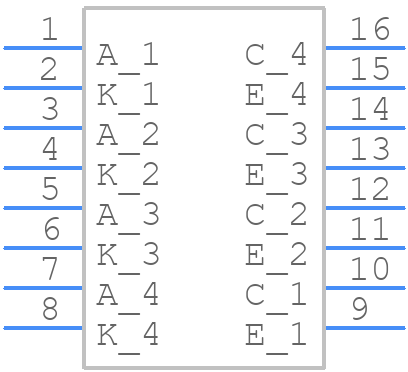

PS2802-4-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS2802-4-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS2802-4-F3-A
click to zoom
3D Models
PS2802-4-A - Renesas Electronics - 3D model - Small Outline Packages - PS2802-4-F3-A
click to zoom

PS2802-4-A Details

  • Manufacturer Part Number:

    PS2802-4-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    1998-05-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    40 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    200%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    400 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e6

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Power Dissipation-Max:

    0.12 W

  • Response Time-Max:

    0.0002 s

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

PS2802-4-A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a thermally conductive material for the heat sink, and ensure good thermal contact between the device and the heat sink. Also, consider using a temperature sensor to monitor the device temperature and adjust the operating conditions accordingly.
  • Use X7R or X5R ceramic capacitors with a voltage rating of at least 10V for the input and output capacitors. A 10uF capacitor is recommended for the input, and a 22uF capacitor is recommended for the output.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended operating range. Also, consider using a TVS diode or a zener diode to protect the device from voltage spikes.
  • The recommended input voltage range is 2.7V to 5.5V. Operating the device outside this range may affect its performance and reliability.
