PS2806-4-A - Renesas Electronics

Description: Optoisolator Darlington Output 2500Vrms 4 Channel 16-SOP

Download PS2806-4-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

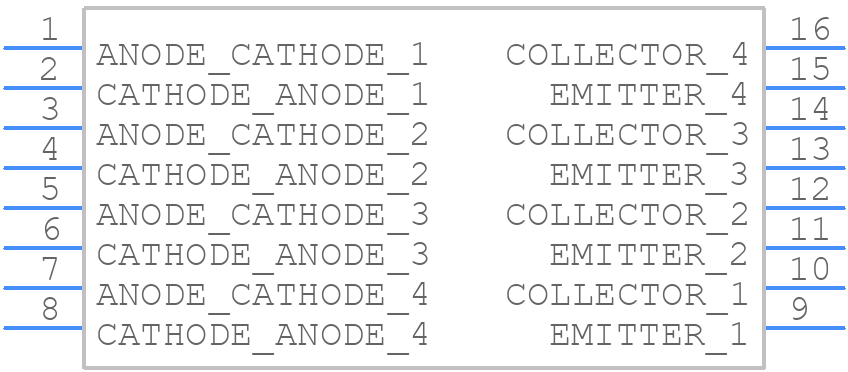

Symbol
PS2806-4-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS2806-4-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS2806-4-A
click to zoom
3D Models
PS2806-4-A - Renesas Electronics - 3D model - Small Outline Packages - PS2806-4-A
click to zoom

PS2806-4-A Details

  • Manufacturer Part Number:

    PS2806-4-A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-16

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    40 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    200%

  • Current Transfer Ratio-Nom:

    2000%

  • Dark Current-Max:

    400 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    2500 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Power Dissipation-Max:

    0.12 W

  • Response Time-Max:

    0.0002 s

  • Surface Mount:

    YES

PS2806-4-A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and EMI.
  • Use a thermally conductive material for the heat sink, and ensure good thermal contact between the device and the heat sink. Also, consider using a temperature sensor to monitor the device temperature and adjust the operating conditions accordingly.
  • Use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor type should be X5R or X7R ceramic or film capacitors.
  • Use a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended operating range. Also, consider using a TVS diode or a zener diode to clamp the input voltage.
  • The recommended input voltage range is 2.7V to 5.5V. However, the device can operate down to 2.3V with reduced performance and efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS2806-4-A Overview

Use the download button to access the PS2806-4-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS280, or try a keyword search, such as Optocoupler
