Description:The PS2841-4A and PS2841-4B are optically coupled isolators containing GaAs light emitting diodes and NPN silicon phototransistors. These products include four channels in a single package for high-density mounting applications. The PS2841-4A and PS2841-4B are the world's smallest class of photocouplers and realize about 50%reduction in mounting area compared with the PS280x and PS281x Series.
A good PCB layout for the PS2841-4B-F3-AX involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths to reduce noise and electromagnetic interference.
To ensure reliable operation across the full temperature range (-40°C to 100°C), ensure proper thermal management, avoid overheating, and follow the recommended storage and handling guidelines.
Using a different input voltage may affect the photocoupler's performance, including the current transfer ratio and propagation delay. Consult the datasheet and application notes for specific guidance on voltage variations.
To troubleshoot issues, check the input voltage, output load, and PCB layout. Verify that the device is operated within the recommended specifications, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Yes, handle the device by the body, not the leads, to prevent damage. Avoid exposing the device to excessive heat, moisture, or mechanical stress, and follow proper electrostatic discharge (ESD) precautions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2841-4B-F3-AX Overview

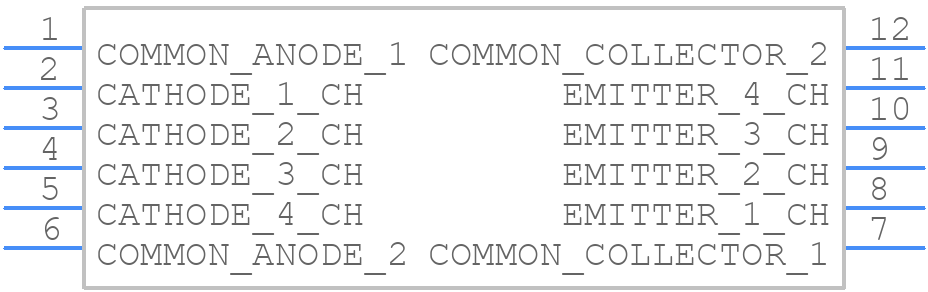

Use the download button to access the PS2841-4B-F3-AX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PS284,
or try a keyword search, such as Optocoupler
