Description:The PS2845-4A is an optically coupled isolator containing GaAs light emitting diodes and NPN silicon phototransistors. This product includes four channels in a single package for high-density mounting applications. The PS2845-4A is the world's smallest class of photocouplers and realizes about 50% reduction in mounting area compared with the PS280x and PS281x Series.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN18421) and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
The PS2845-4A-F3-AX has an internal OVP circuit, but it's recommended to add external OVP components (e.g., TVS diodes or zener diodes) to protect against high-voltage transients. Consult the datasheet and application notes for specific implementation guidelines.
The PS2845-4A-F3-AX has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's specifications accordingly.
Renesas provides troubleshooting guides and FAQs on their website. Common issues can be resolved by checking the PCB layout, component selection, and soldering quality. Additionally, using an oscilloscope to analyze the output voltage and current waveforms can help identify the root cause of the issue.
Yes, the PS2845-4A-F3-AX is a high-frequency device, and proper EMI/EMC design considerations are crucial. Renesas recommends following their EMI/EMC guidelines, using shielding, and implementing filtering and decoupling techniques to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2845-4A-F3-AX Overview

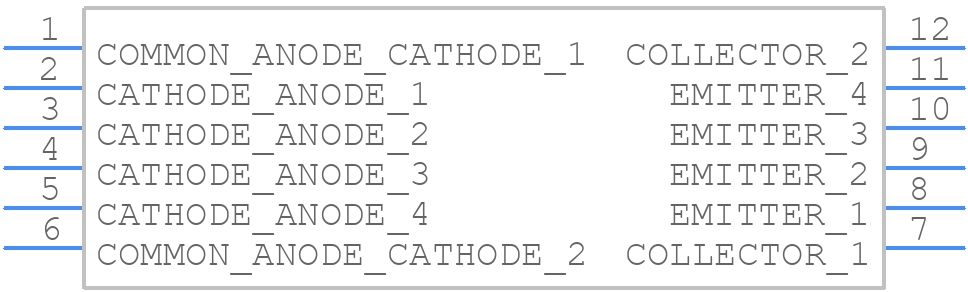

Use the download button to access the PS2845-4A-F3-AX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PS284,
or try a keyword search, such as Optocoupler
