PS9817A-2-F3-AX - Renesas Electronics

Description: The PS9817A-1 and PS9817A-2 are active-low type high-speed photocouplers that use a GaAlAs light-emitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side. The PS9817A-1 and PS9817A-2 are designed specifically for high common mode transient immunity (CMR) and low pulse width distortion. The PS9817A-2 is suitable for high density applications.

Download PS9817A-2-F3-AX Model

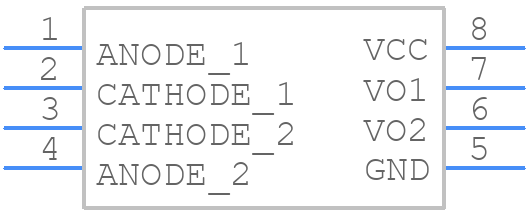

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PS9817A-2-F3-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8
click to zoom
3D Models
PS9817A-2-F3-AX - Renesas Electronics  - 3D model - Small Outline Packages - SOIC 8
click to zoom

PS9817A-2-F3-AX Details

  • Manufacturer Part Number:

    PS9817A-2-F3-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    10 MBps

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Response Time-Nom:

    2e-8 ns

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD
