PS9821-1-AX - CEL

Description: High Speed Optocouplers 3.3V OC HI CMRR SGL CH

Download PS9821-1-AX Model

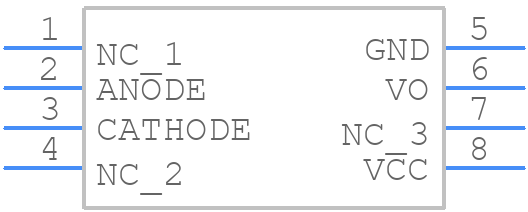

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PS9821-1-AX - CEL PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - PS9821-1-AX
click to zoom
3D Models
PS9821-1-AX - CEL  - 3D model - SOT23 (8-Pin) - PS9821-1-AX
click to zoom

PS9821-1-AX Details

  • Manufacturer Part Number:

    PS9821-1-AX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SSOP-8

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    California Eastern Laboratories (CEL)

  • YTEOL:

    2

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e4

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Supply Voltage-Min:

    2.7 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

PS9821-1-AX Frequently Asked Questions (FAQs)

  • CEL recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the ground pins to the ground plane. Additionally, keep the input and output traces separate and as short as possible to minimize noise and EMI.
  • The PS9821-1-AX requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range.
  • The PS9821-1-AX is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at temperatures above 70°C to ensure reliable operation.
  • CEL recommends checking the PCB layout, ensuring proper biasing and decoupling, and verifying that the input and output impedances are matched. Additionally, use a spectrum analyzer to check for oscillations and noise, and consult the application notes and technical support resources provided by CEL.
  • Yes, the PS9821-1-AX can be used in switching power supply applications, but it's essential to ensure that the device is properly biased and that the input and output filters are designed to minimize noise and EMI. Consult the application notes and technical support resources provided by CEL for specific guidance.
