PS9821-1-AX - Renesas Electronics

Description: The PS9821-1 and PS9821-2 are active-low type high-speed photocouplers that use a GaAlAs light-emitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side. The PS9821-1, -2 are designed specifically for high common mode transient immunity (CMR) and low pulse width distortion, PS9821-2 is suitable for high density applications.

Download PS9821-1-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

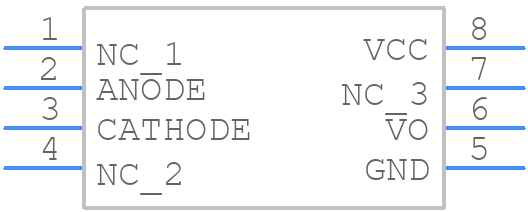

PS9821-1-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS9821-1-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS9821-2-A
click to zoom
3D Models
PS9821-1-AX - Renesas Electronics - 3D model - Small Outline Packages - PS9821-2-A
click to zoom

PS9821-1-AX Details

  • Manufacturer Part Number:

    PS9821-1-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Nom:

    2e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

PS9821-1-AX Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APNK001) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor IC, to detect and respond to overvoltage conditions. The PS9821-1-AX has an internal OVP circuit, but it's recommended to use an external circuit for added protection.
  • The PS9821-1-AX has an operating temperature range of -40°C to 125°C, but it's recommended to operate within the range of -20°C to 85°C for optimal performance and reliability.
  • Renesas provides a troubleshooting guide in their application note (APNK002) which includes steps to identify and resolve common issues, such as power-on reset, clock frequency, and communication errors.
  • Renesas recommends a specific power-up sequence to ensure proper initialization and operation of the PS9821-1-AX. The sequence involves powering up the VCC and VDD pins in a specific order, followed by the clock signal.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS9821-1-AX Overview

Use the download button to access the PS9821-1-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS982, or try a keyword search, such as Optocoupler
